Tabular data and specifications
Isotop Compact B/T Vibration Damper |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
|
|---|---|---|---|---|---|
 |
in Kg | in N | |||
| Isotop Compact-4 B/T | 4 | 41 | 12.1 Hz | 39512 | £9.85 |
| Isotop Compact-9 B/T | 8 | 79 | 11.6 Hz | 39513 | £9.85 |
| Isotop Compact-15 B/T | 15 | 147 | 11.5 Hz | 39514 | £9.85 |
| Isotop Compact-20 B/T | 27 | 264 | 10.7 Hz | 39515 | £9.85 |
| Isotop Compact-40 B/T | 37 | 363 | 10.0 Hz | 38816 | £9.85 |
| Isotop Compact-50 B/T | 50 | 491 | 10.9 Hz | 39517 | £9.85 |
| Isotop Compact-70 B/T | 63 | 619 | 9.9 Hz | 39518 | £9.85 |
| Isotop Compact-100 B/T | 95 | 931 | 10.5 Hz | 39520 | £10.50 |

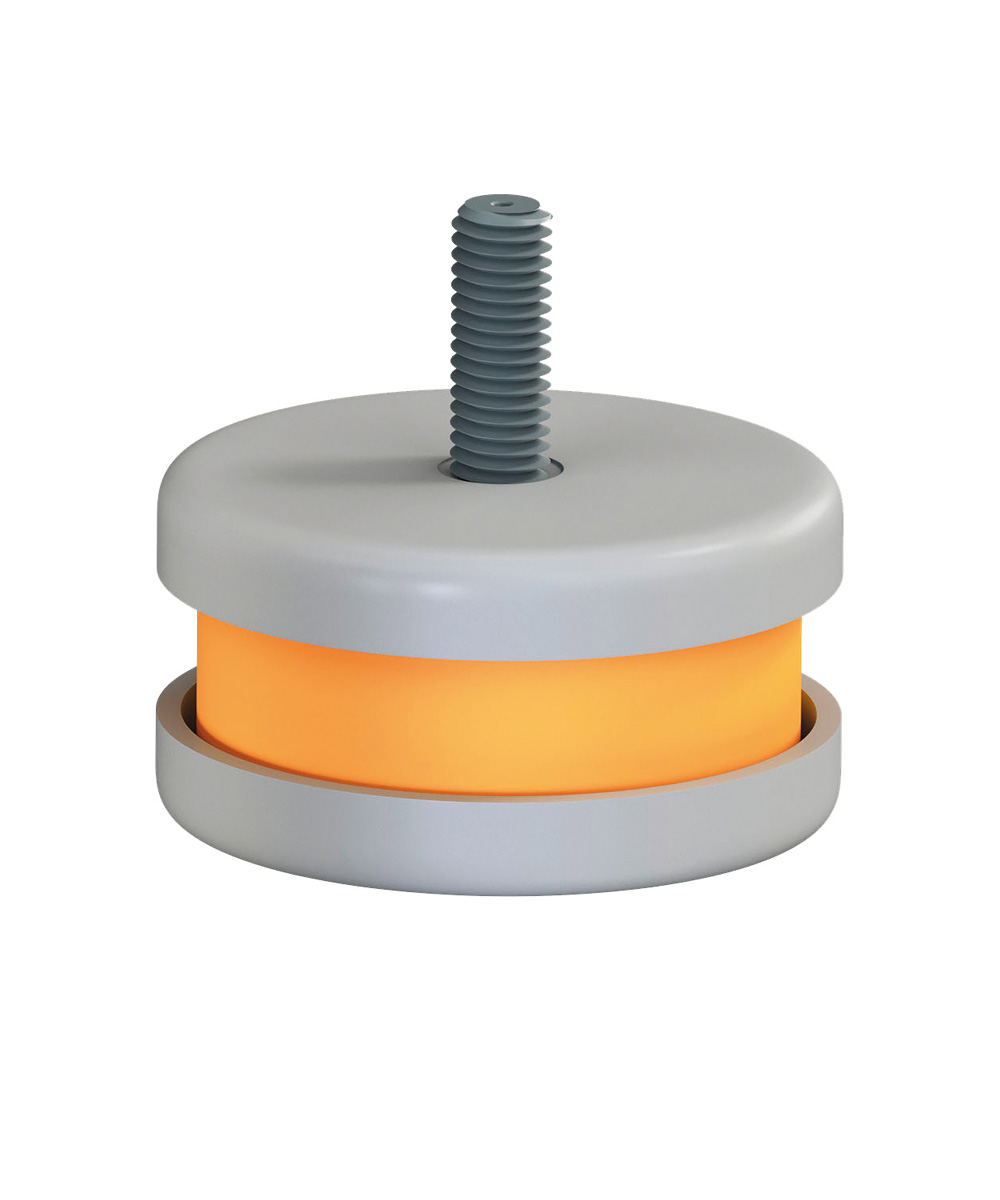

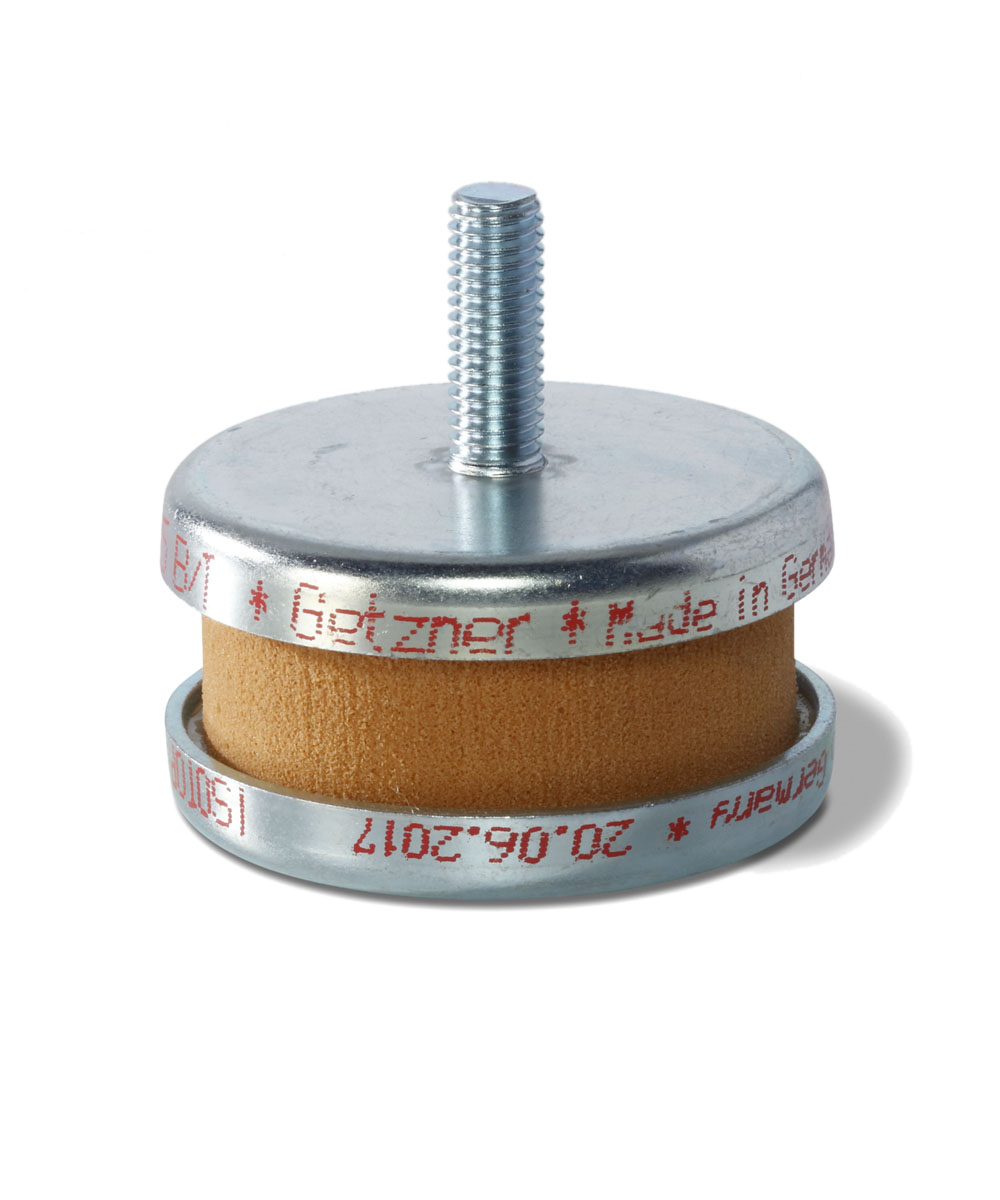

Isotop® Compact B/T vibration dampers
Compact B/T vibration dampers help machines and devices to operate in a quieter and more efficient way. They play a key role when it comes to reducing mechanical vibrations and noise, which are caused by the operation of devices and can be transferred to the building structure and surrounding environment. Without effective vibration dampers, these vibrations lead to unpleasant noise disturbance and potential damage to the structure of the building. Vibration dampers absorb these vibrations and prevent them from being transferred to the building, which prolongs the service life of the device and increases comfort levels in both living and working areas.
Isotop® vibration dampers are impressive
- Optimum stability at a low natural frequency.
- Reduction of primary and secondary noise.
- Simple installation and long service life.
The right Isotop® Compact B/T vibration dampers for every application
- Vibration dampers for low installation heights for load ranges between 4 kg and 95 kg.
- Natural frequency from 9.9 Hz.

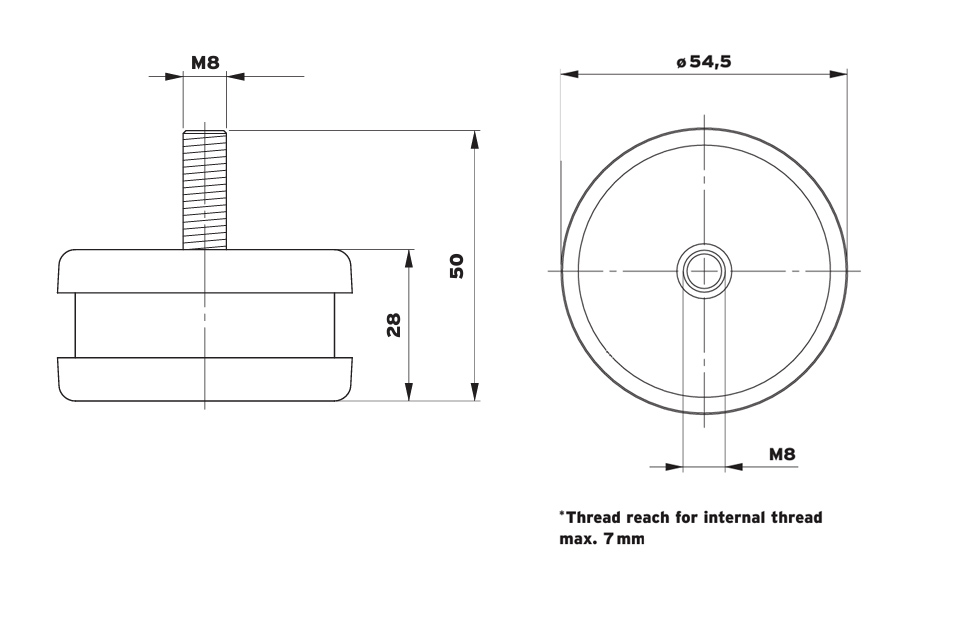

- M8 internal thread and/or stud bolt.
- Available in four different attaching options.
- Can also be used as an anti-slip machine mounting. Contact us for further information and enquiries.
Isotop® Compact 4
Isotop® Compact 9
Isotop® Compact 15
Isotop® Compact 20
Isotop® Compact 40
Isotop® Compact 50
Isotop® Compact 70
Isotop® Compact 100
