Tabular data and specifications
Isotop Compressor Grommet CGR |
Dimension |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
|
|---|---|---|---|---|---|---|
 |
in Kg | in N | ||||
| CGR-3-37×25-M8-S | 37 x 25mm | 3 | 29 | 14.0 Hz | 42177 | £3.30 |
| CGR-6-37×25-M8-S | 37 x 25mm | 6 | 59 | 13.7 Hz | 42178 | £3.35 |
| CGR-10-37×25-M8-S | 37 x 25mm | 10 | 98 | 12.7 Hz | 41652 | £3.45 |
| CGR-20-37×25-M8-S | 37 x 25mm | 20 | 196 | 13.0 Hz | 42179 | £3.50 |

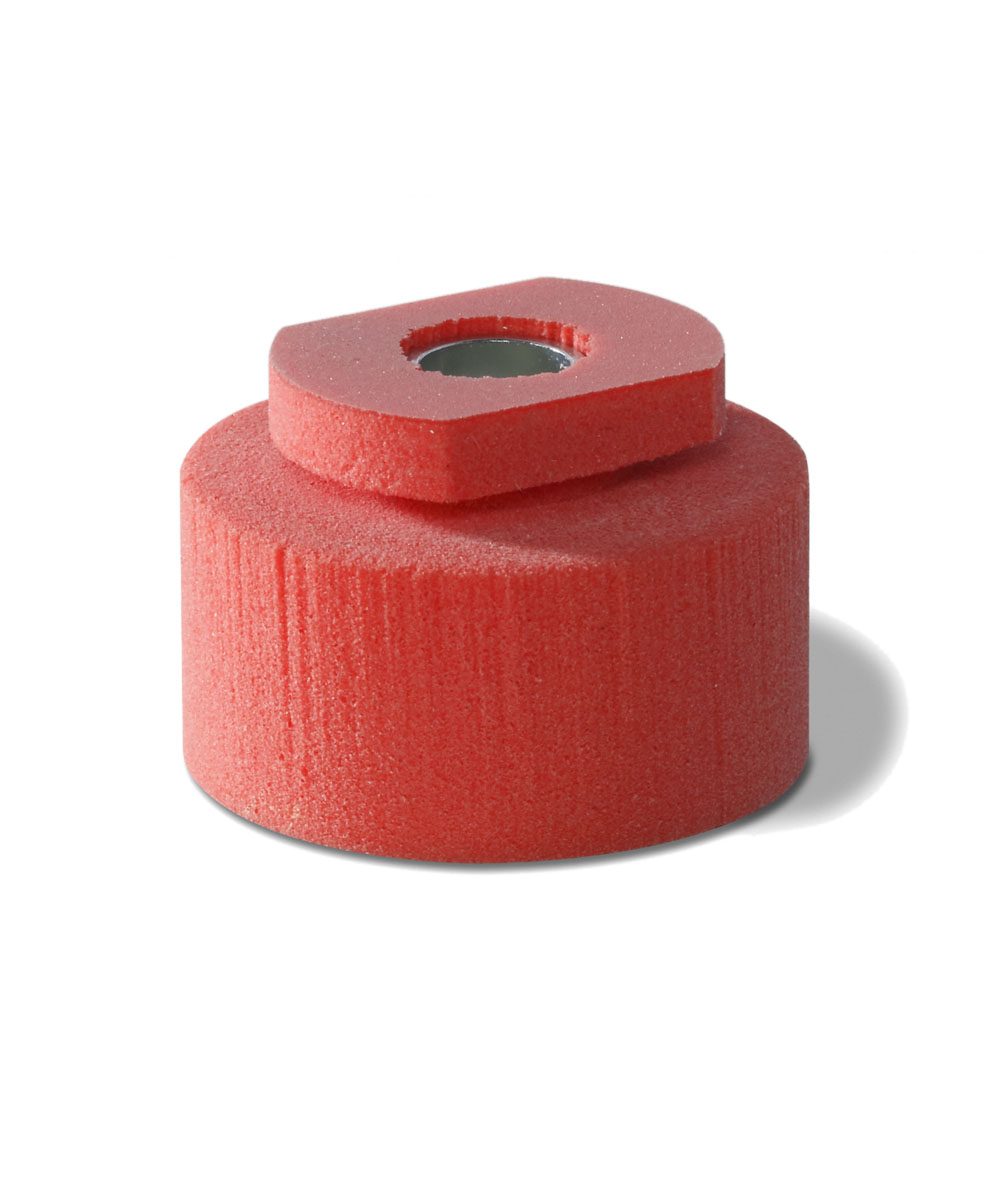

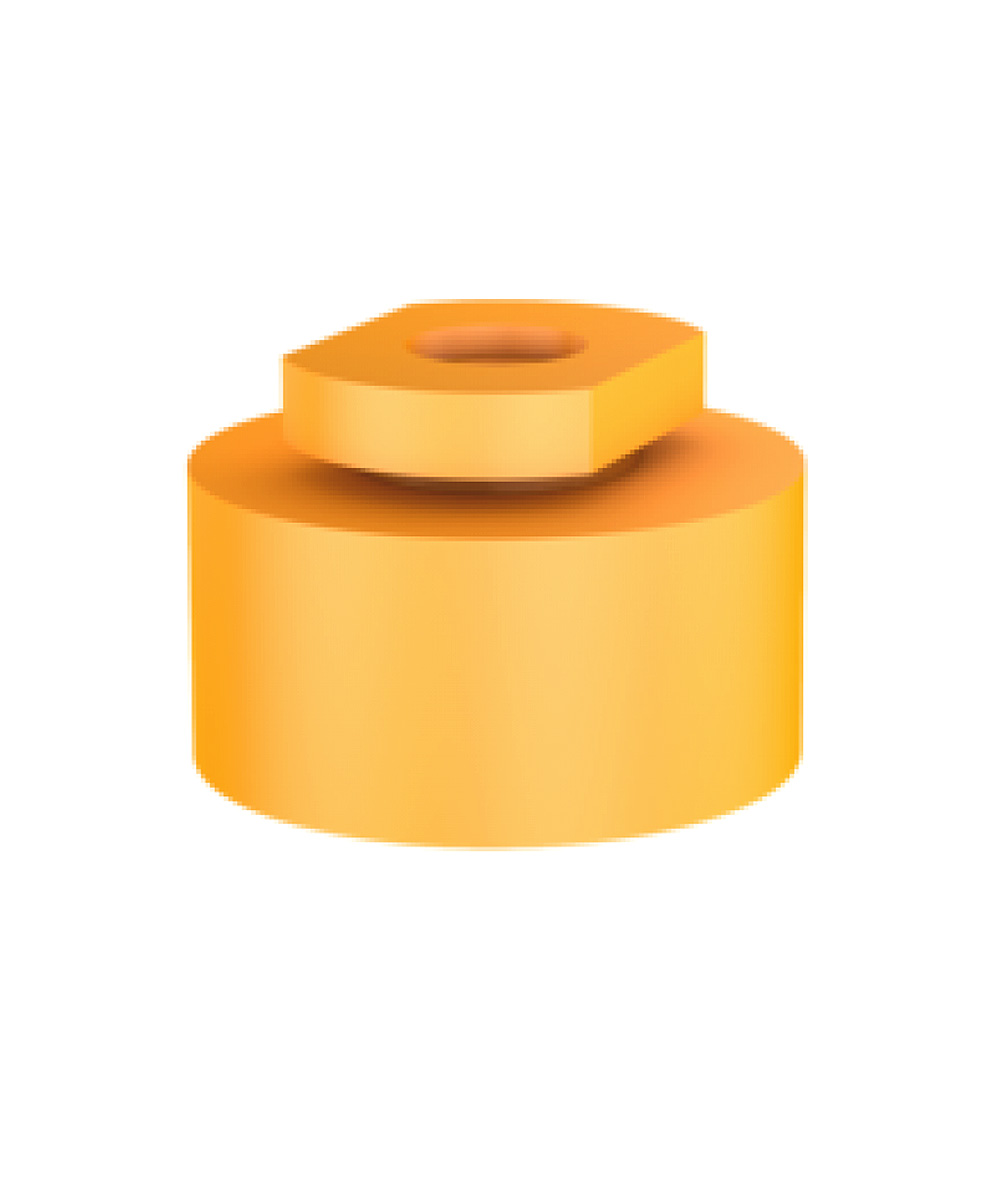

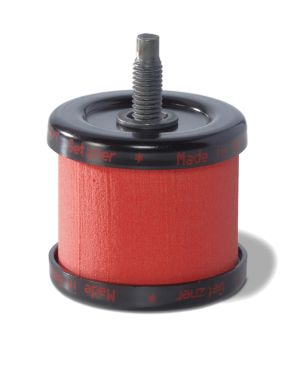

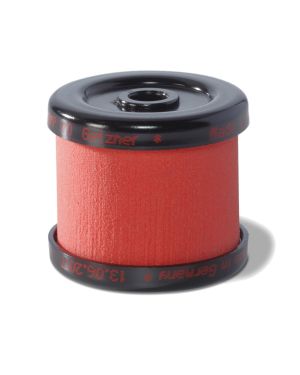

Isotop® Compressor Grommet CGR
Isotop Compressor Grommet CGR / vibration dampers help machines and devices to operate in a quieter and more efficient way. They play a key role when it comes to reducing mechanical vibrations and noise, which are caused by the operation of devices and can be transferred to the building structure and surrounding environment. Without effective vibration dampers, these vibrations lead to unpleasant noise disturbance and potential damage to the structure of the building. Vibration dampers absorb these vibrations and prevent them from being transferred to the building, which prolongs the service life of the device and increases comfort levels in both living and working areas.
Isotop® vibration dampers are impressive
- Optimum stability at a low natural frequency.
- Reduction of primary and secondary noise.
- Simple installation and long service life.
The right Isotop® Compressor Grommets for every application
- Compressor grommets made from high-performance dampers for load ranges between 3 kg and 20 kg.

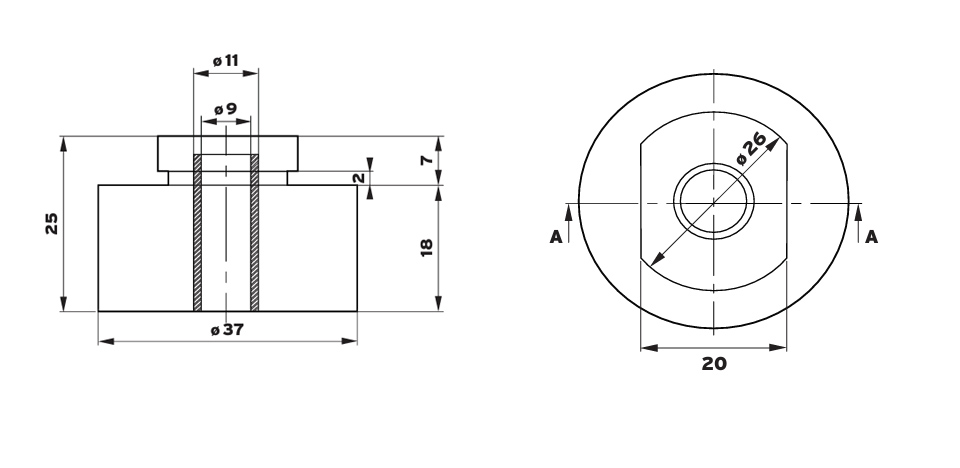

- Overall height 25 mm.
- Integrated steel case for secure mounting with high starting torque.
- Suitable for M8 screws. Contact us for further information and enquiries.
