Tabular data and specifications
Isotop DMSN BL Steel Springs with Damper |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
|
|---|---|---|---|---|---|
 |
in Kg | in N | |||
| Isotop DMSN-BL4-62/72 | 215 | 2,109 | 6.6 Hz | 47239 | £202.60 |
| Isotop DMSN-BL4-70/84 | 395 | 3,875 | 5.3 Hz | 47240 | £202.60 |
| Isotop DMSN-BL6-72/84 | 520 | 5,101 | 5.5 Hz | 47248 | £253.60 |
| Isotop DMSN-BL9-74-85 | 750 | 7,358 | 5.6 Hz | 47242 | £311.50 |
| Isotop DMSN-BL9-70/89 | 895 | 8,780 | 5.3 Hz | 47241 | £311.50 |
| Isotop DMSN-BL16-712/804 | 1,150 | 11,282 | 5.9 Hz | 47246 | £446.55 |
| Isotop DMSN-BL16-700/816 | 1,590 | 15,598 | 5.3 Hz | 47244 | £446.55 |

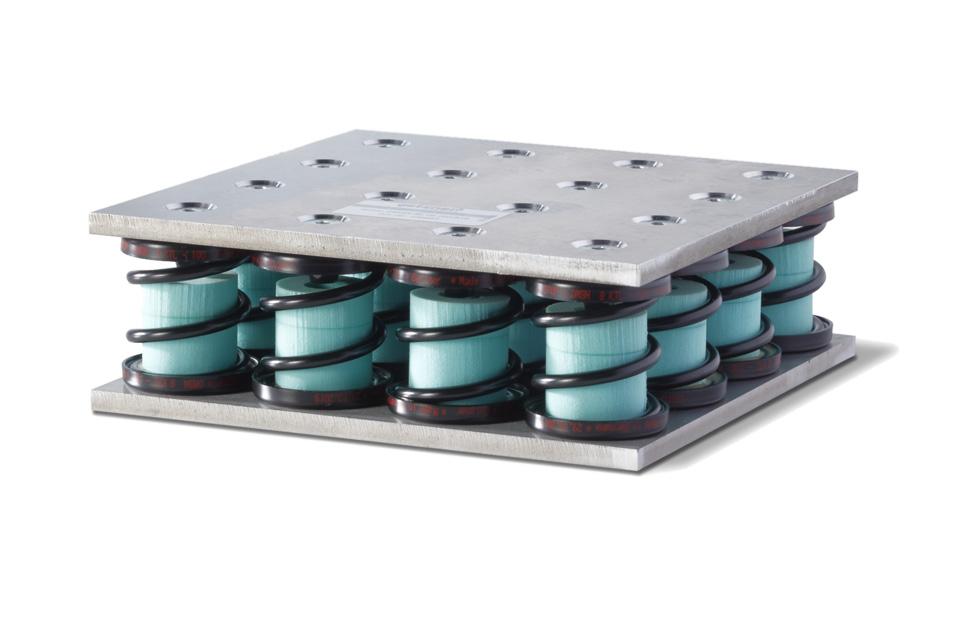

Isotop® DMSN BL steel springs with dampers
Isotop DMSN BL steel springs with dampers – anti-vibration spring mounts with damper core are special spring elements designed to combine the properties of springs with the benefits of the internal damper core. This combination enables dynamic loads to be absorbed effectively and unwanted vibrations to be reduced. The spring mounts are widely used in various industry sectors. The damper core helps to improve overall performance. Excitations are absorbed effectively to dampen the overall system.
Isotop® steel springs with dampers are impressive
- The combination of spring mounts and damper cores enables mechanical energy to be absorbed effectively, while simultaneously reducing vibrations.
- The kinetic energy is converted by the damper core, leading to improved shock pulse damping.
- The damper core’s durable properties ensure consistent performance over long periods of time.
The right Isotop® DMSN BL steel springs with dampers for every application
- Block element made from steel spring isolators for load ranges between 215 kg and 1,590 kg.
- Overall height 75 mm.
- Natural frequency from 5.3 Hz.
- Combination of 4, 6, 9 or 16 Isotop® DMSN.
- Cathodic dip-painted for high levels of corrosion protection and powder-coated pressure distribution plate. Contact us for further information and enquiries.

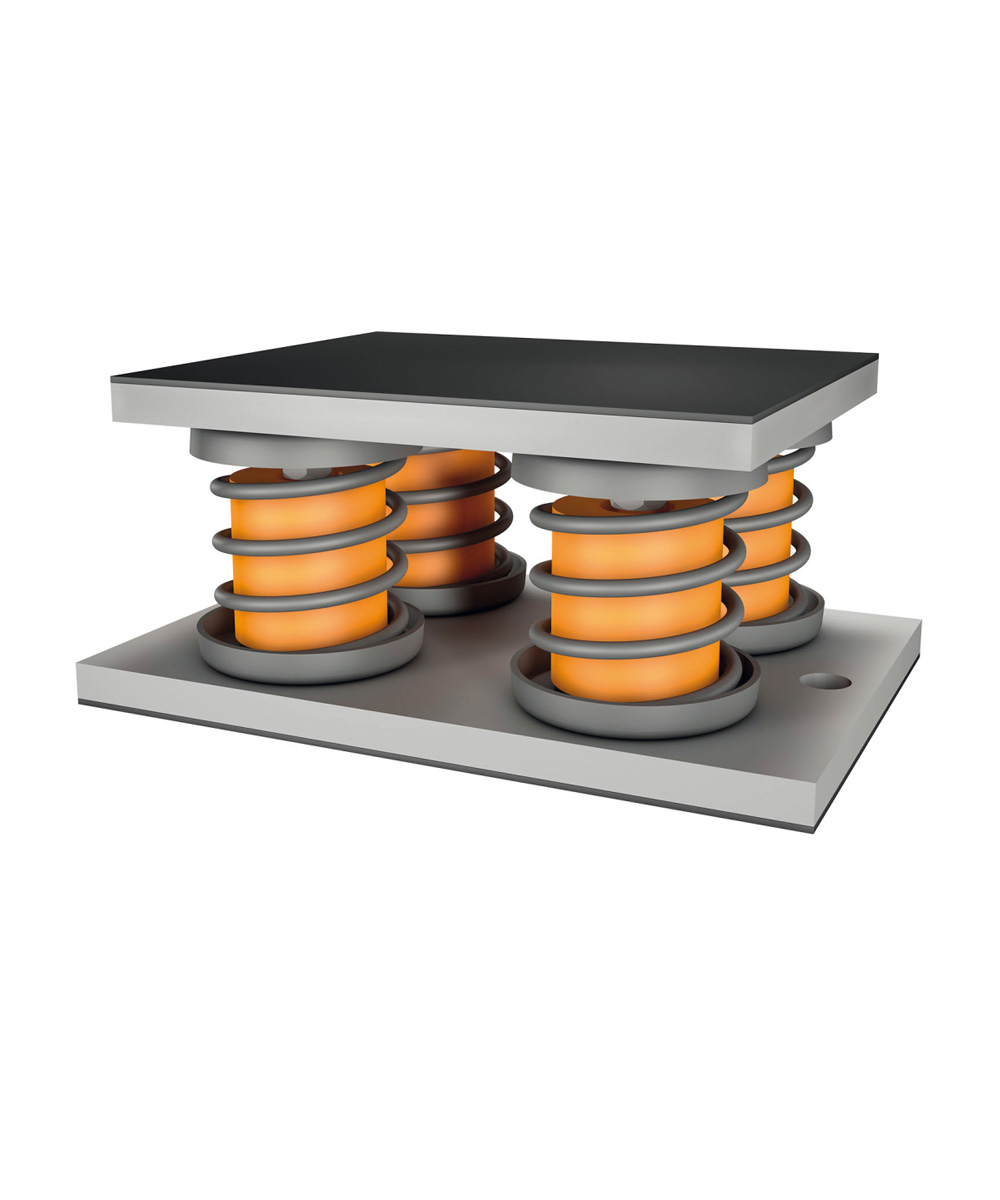

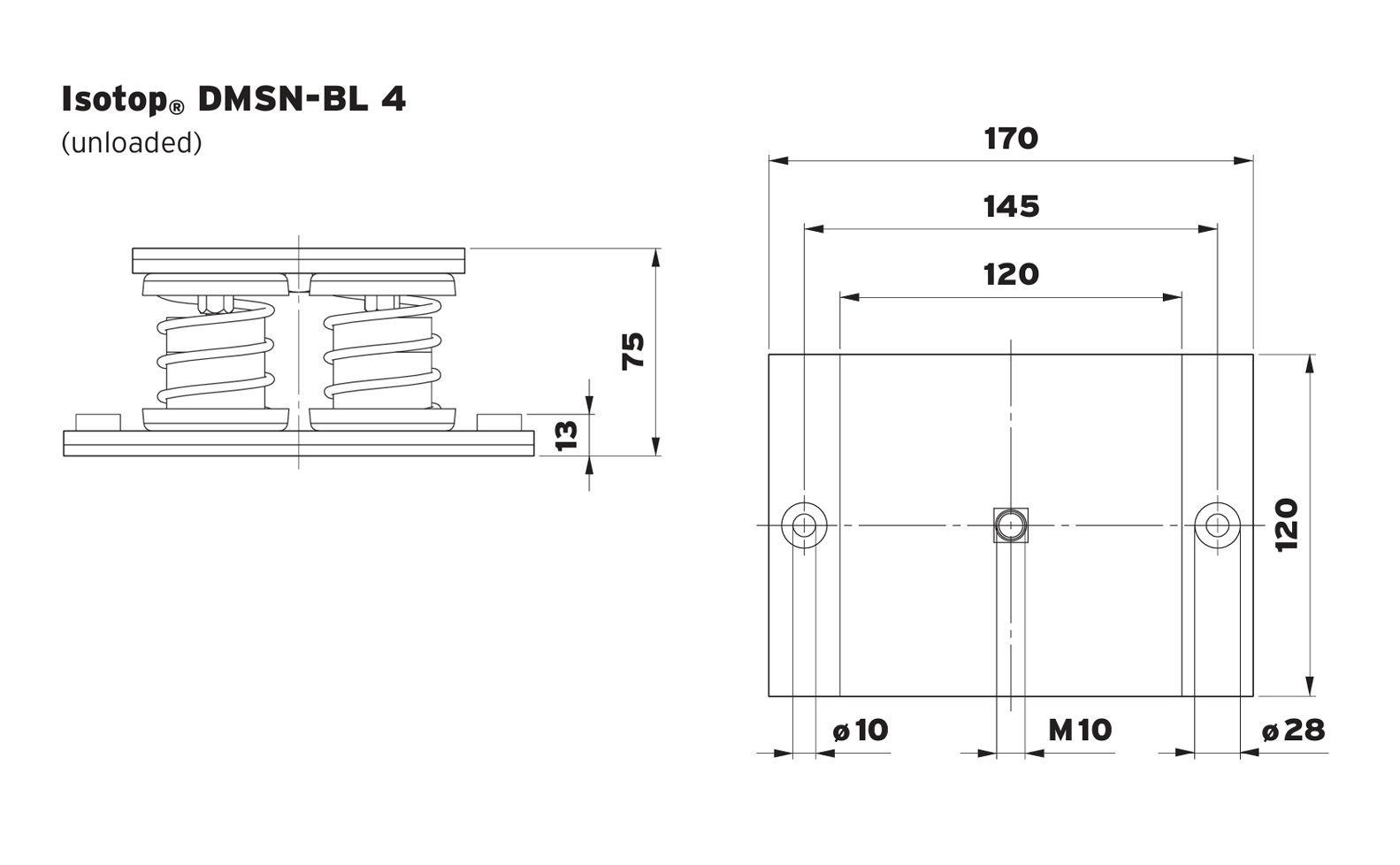

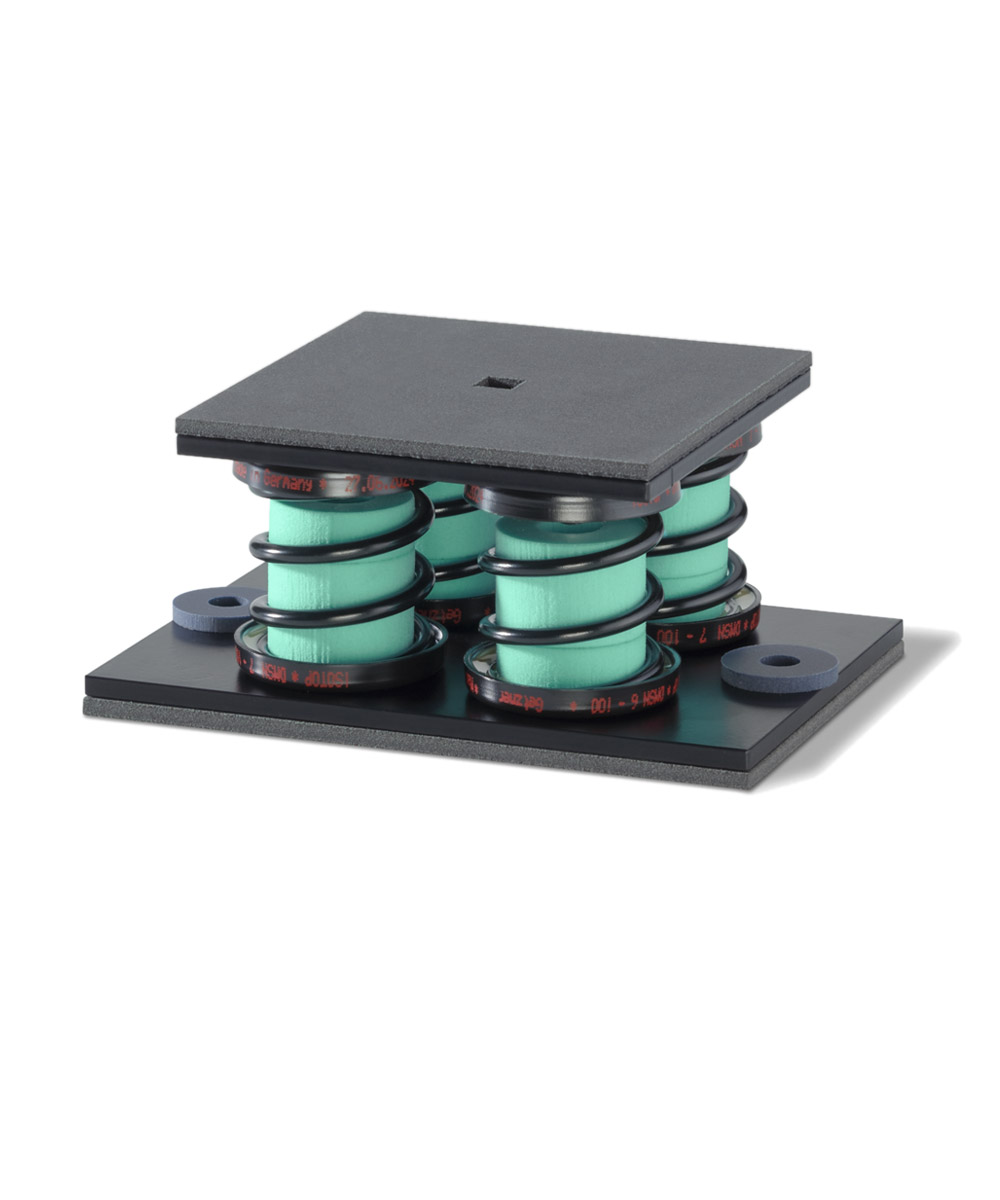

Isotop® DMSN-BL4-62/72
Isotop® DMSN-BL4-70/84

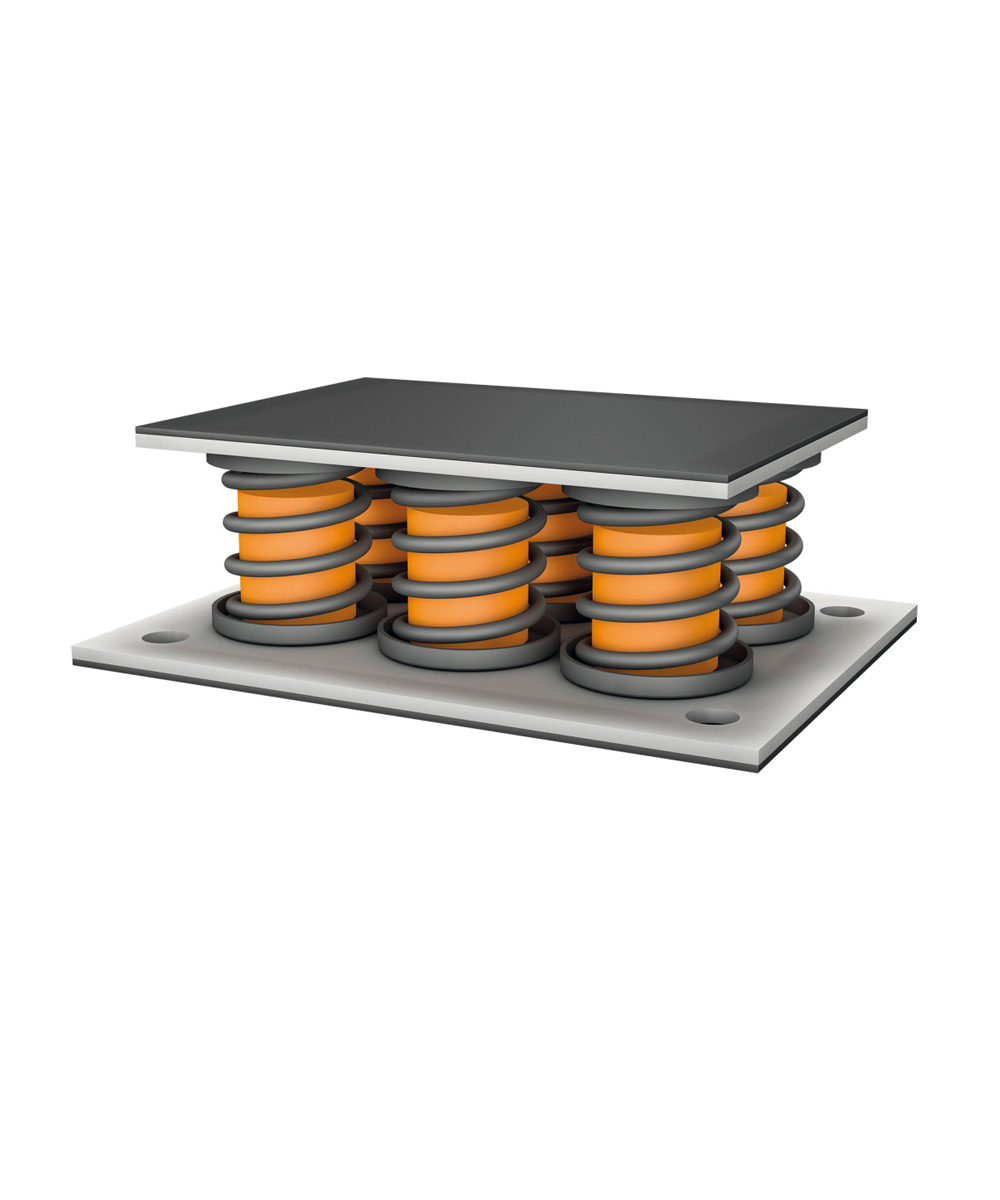

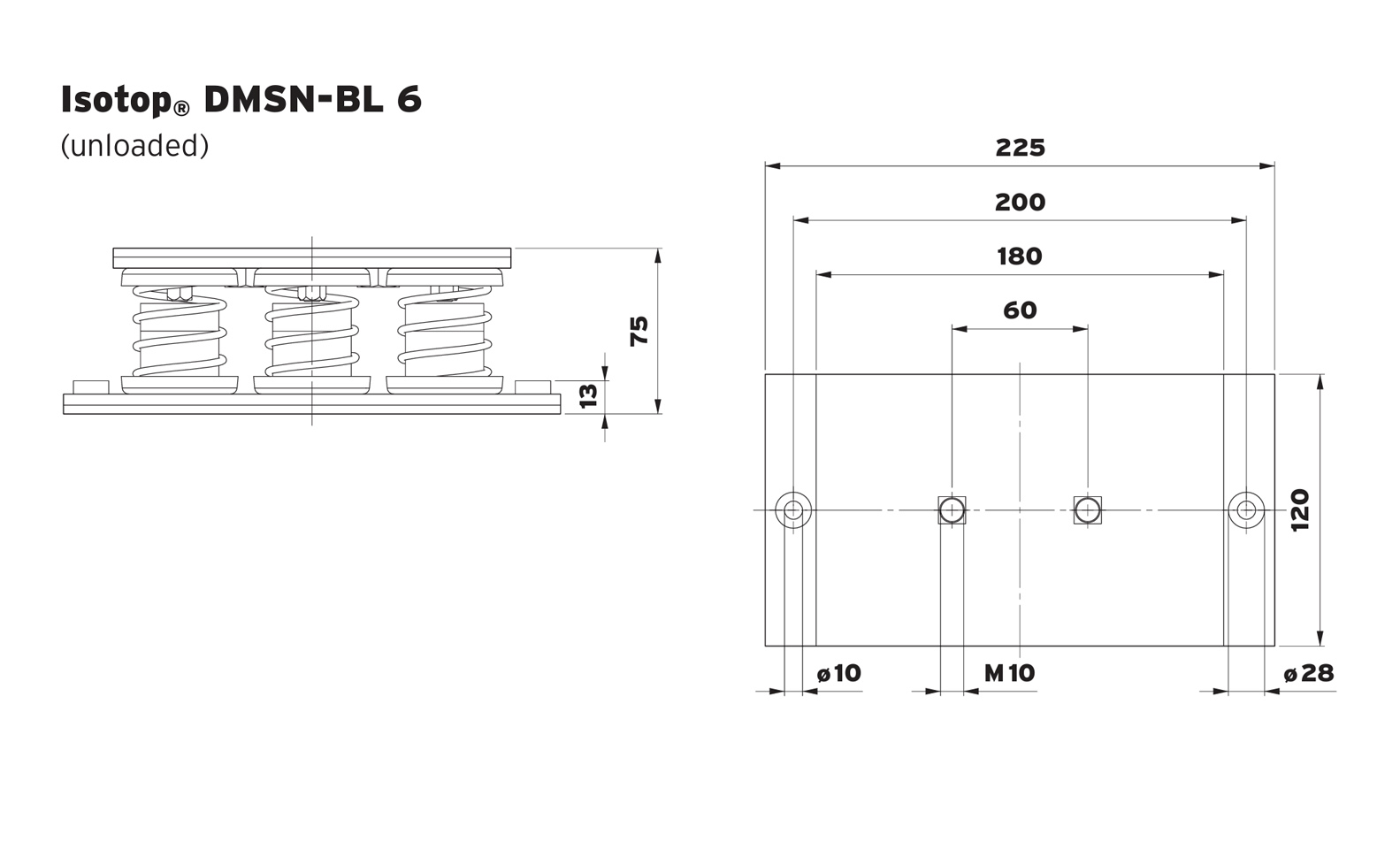

Isotop® DMSN-BL6-72/84

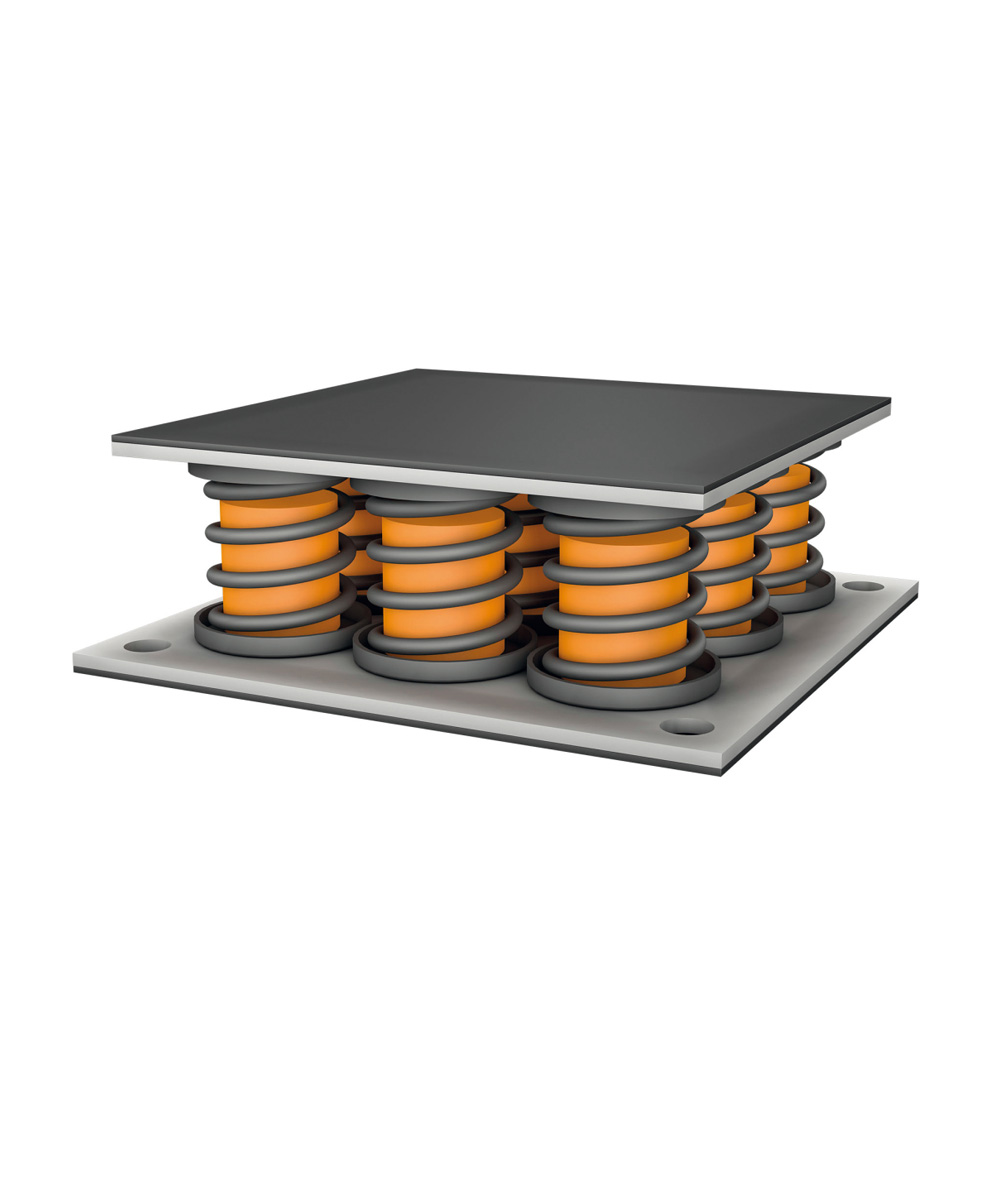

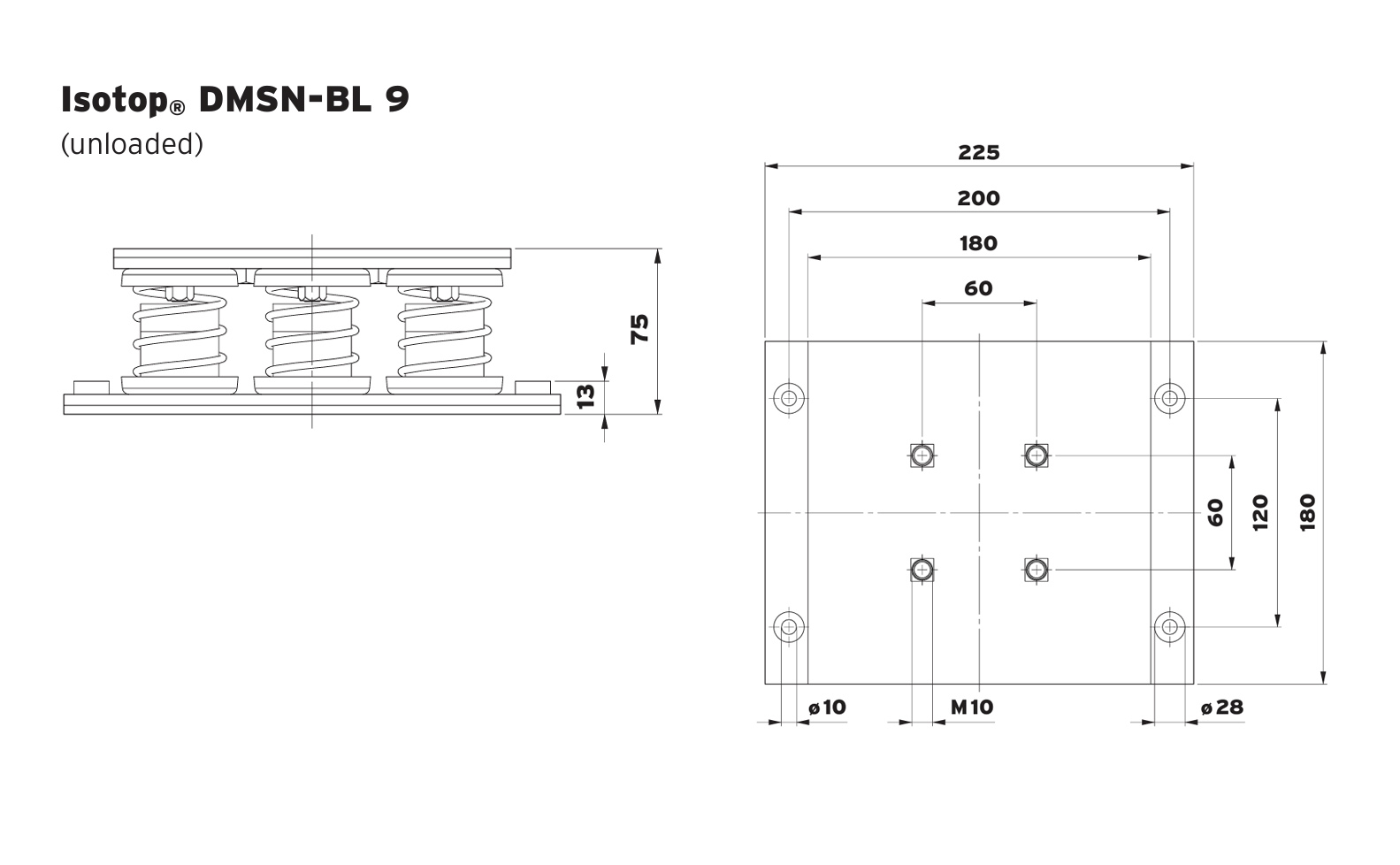

Isotop® DMSN-BL9-74/85
Isotop® DMSN-BL9-70/89

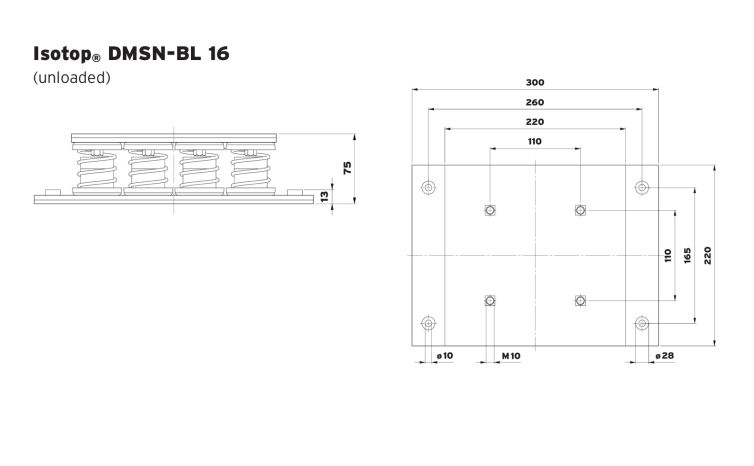

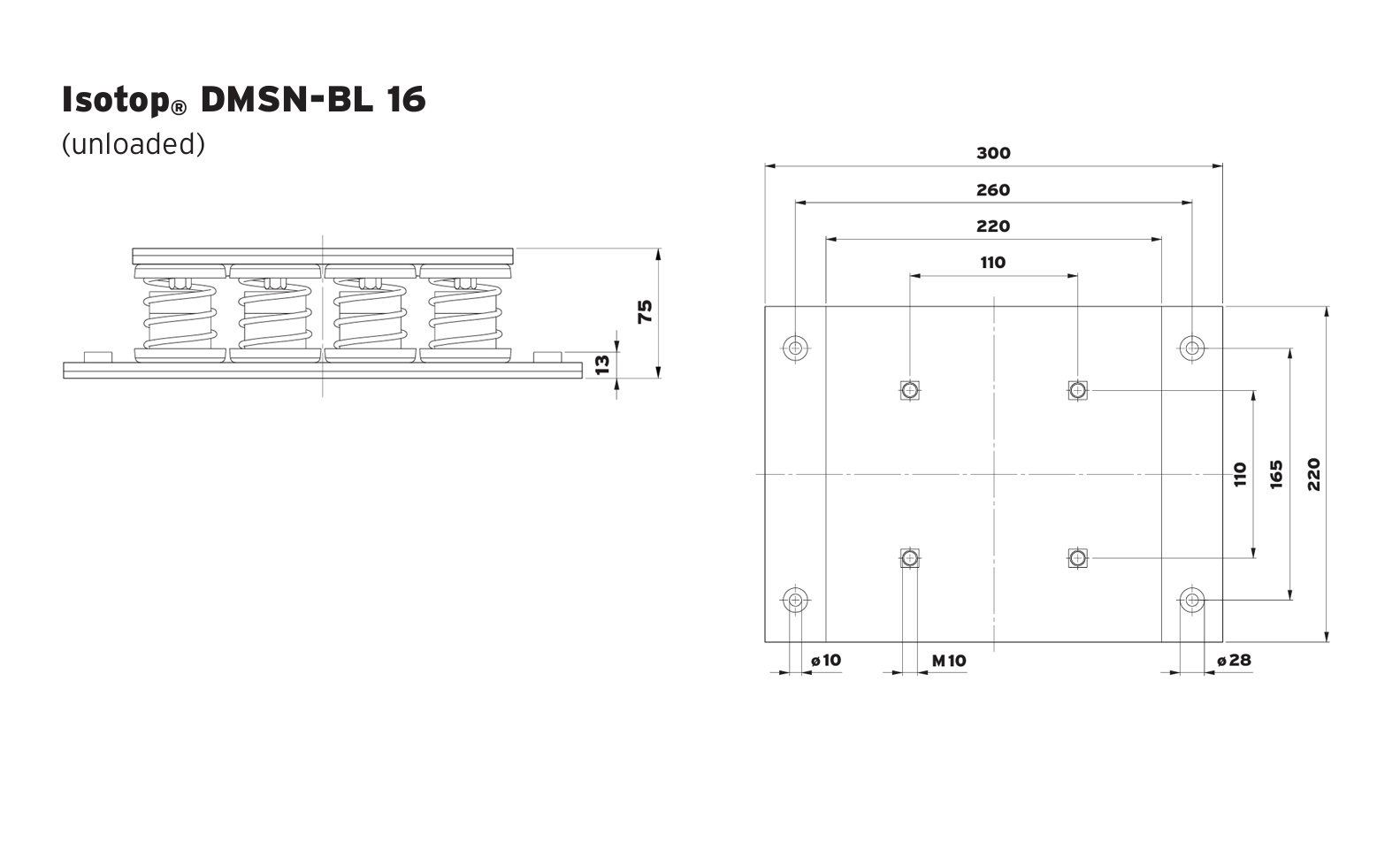

Isotop® DMSN-BL16-712/804
Isotop® DMSN-BL16-700/816
