Tabular data and specifications
Isotop DSD Steel Springs with Damper |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
|
|---|---|---|---|---|---|
 |
in Kg | in N | |||
| Isotop DSD 1 KTL | 24 | 235 | 5.6 Hz | 39492 | £59.00 |
| Isotop DSD 2 KTL | 39 | 383 | 4.9 Hz | 39493 | £59.00 |
| Isotop DSD 3 KTL | 57 | 559 | 4.8 Hz | 39495 | £59.00 |
| Isotop DSD 4 KTL | 87 | 853 | 4.2 Hz | 39496 | £59.00 |
| Isotop DSD 5 KTL | 140 | 1,373 | 4.8 Hz | 39497 | £72.50 |
| Isotop DSD 6 KTL | 200 | 1,962 | 4.3 Hz | 39157 | £72.50 |
| Isotop DSD 7 KTL | 365 | 3,581 | 5.2 Hz | 39498 | £78.85 |
| Isotop DSD 8 KTL | 470 | 4,611 | 4.7 Hz | 39499 | £78.85 |
| Isotop DSD 9 KTL | 650 | 6,377 | 4.6 Hz | 39500 | £78.85 |

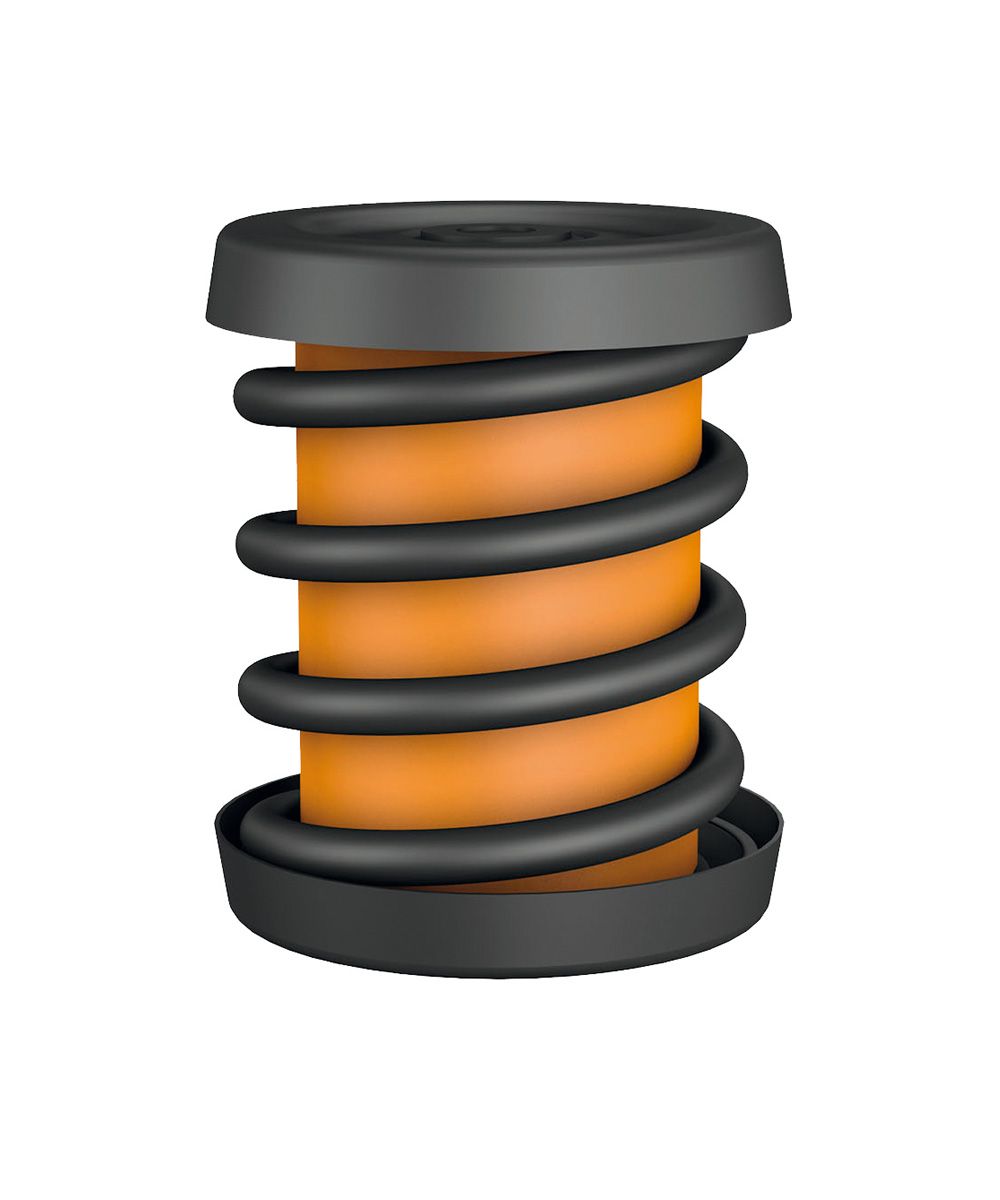

Isotop® DSD steel springs with dampers
Isotop DSD KTL (CDC) steel springs with dampers – anti-vibration spring mounts with damper core are special spring elements designed to combine the properties of springs with the benefits of the internal damper core. This combination enables dynamic loads to be absorbed effectively and unwanted vibrations to be reduced. The spring mounts are widely used in various industry sectors. The damper core helps to improve overall performance. Excitations are absorbed effectively to dampen the overall system.
Isotop® steel springs with dampers are impressive
- The combination of spring mounts and damper cores enables mechanical energy to be absorbed effectively, while simultaneously reducing vibrations.
- The kinetic energy is converted by the damper core, leading to improved shock pulse damping.
- The damper core’s durable properties ensure consistent performance over long periods of time.
The right Isotop® DSD steel springs with dampers for every application
- Steel spring isolator with damper core for load ranges between 24 kg and 650 kg.

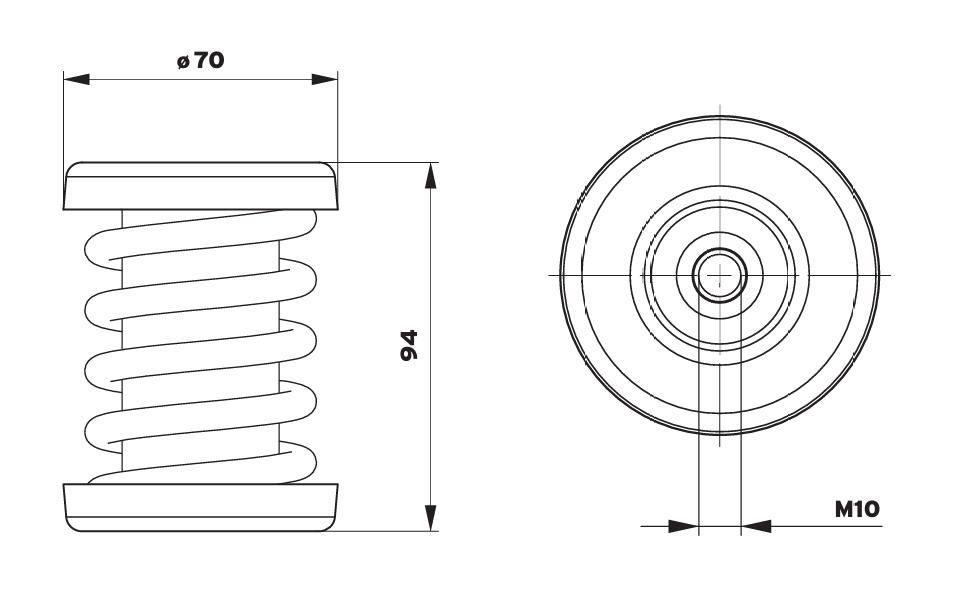

- Overall height 94 mm.
- Cathodic dip-painted for higher levels of corrosion protection.
- M10 internal thread. Contact us for further information and enquiries.
Isotop® DSD 1
Isotop® DSD 2
Isotop® DSD 3
Isotop® DSD 4
Isotop® DSD 5
Isotop® DSD 6
Isotop® DSD 7
Isotop® DSD 8
Isotop® DSD 9
