Tabular data and specifications
Isotop DZE-1 BL Pressure-Tension Element |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
||
|---|---|---|---|---|---|---|
 |
in Kg | in N | ||||
| Isotop DZE-1-BL2-HLH-SP5 | Single Layer | 2,065 | 20,258 | 11.5 Hz | 42595 | £440.90 |
| Isotop DZE-1-BL4-HLH-SP5 | Single Layer | 4,135 | 40,564 | 11.5 Hz | 42597 | £852.10 |
Isotop® DZE-1 BL pressure-tension elements
Isotop DZE-1 BL pressure-tension elements are special components developed to absorb both pressure and tensile forces. They are used in a wide range of applications involving both dynamic and static loads. Push-pull elements are used in many sectors, such as machine engineering and the building and construction industry. They are made from high-strength materials like steel, aluminium or specialised composite materials. These materials ensure a high load-bearing capacity and long service life. Elastomers are used as an isolating layer, which ensures effective vibration isolation and impact damping.
Isotop® pressure-tension elements are impressive
- Effective vibration damping and isolation of vibrations.
- High stability.
- Versatile application options.
- High-quality stainless steel housing for durability and resistance.
The right Isotop® DZE-1 BL pressure-tension element for every application

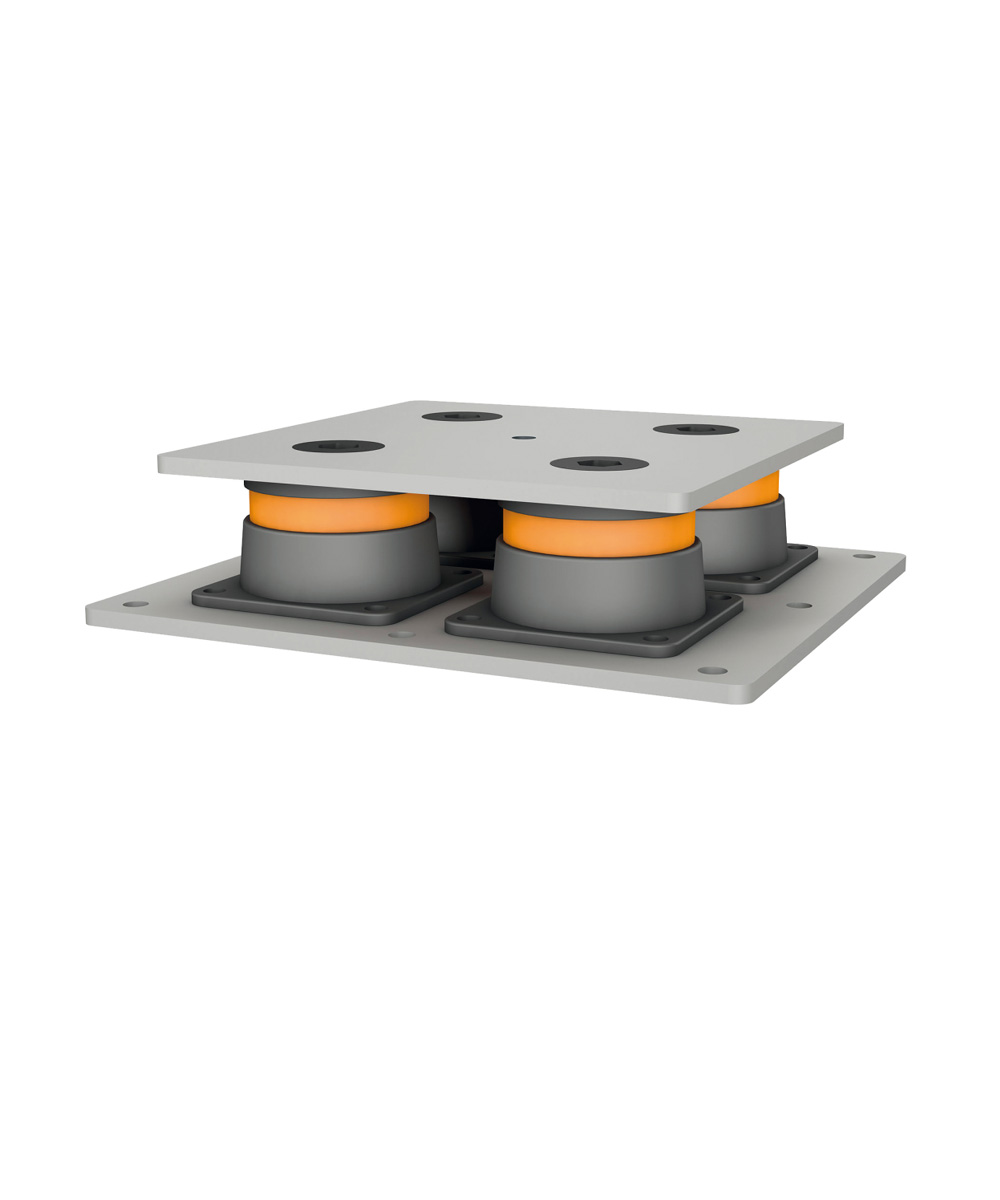

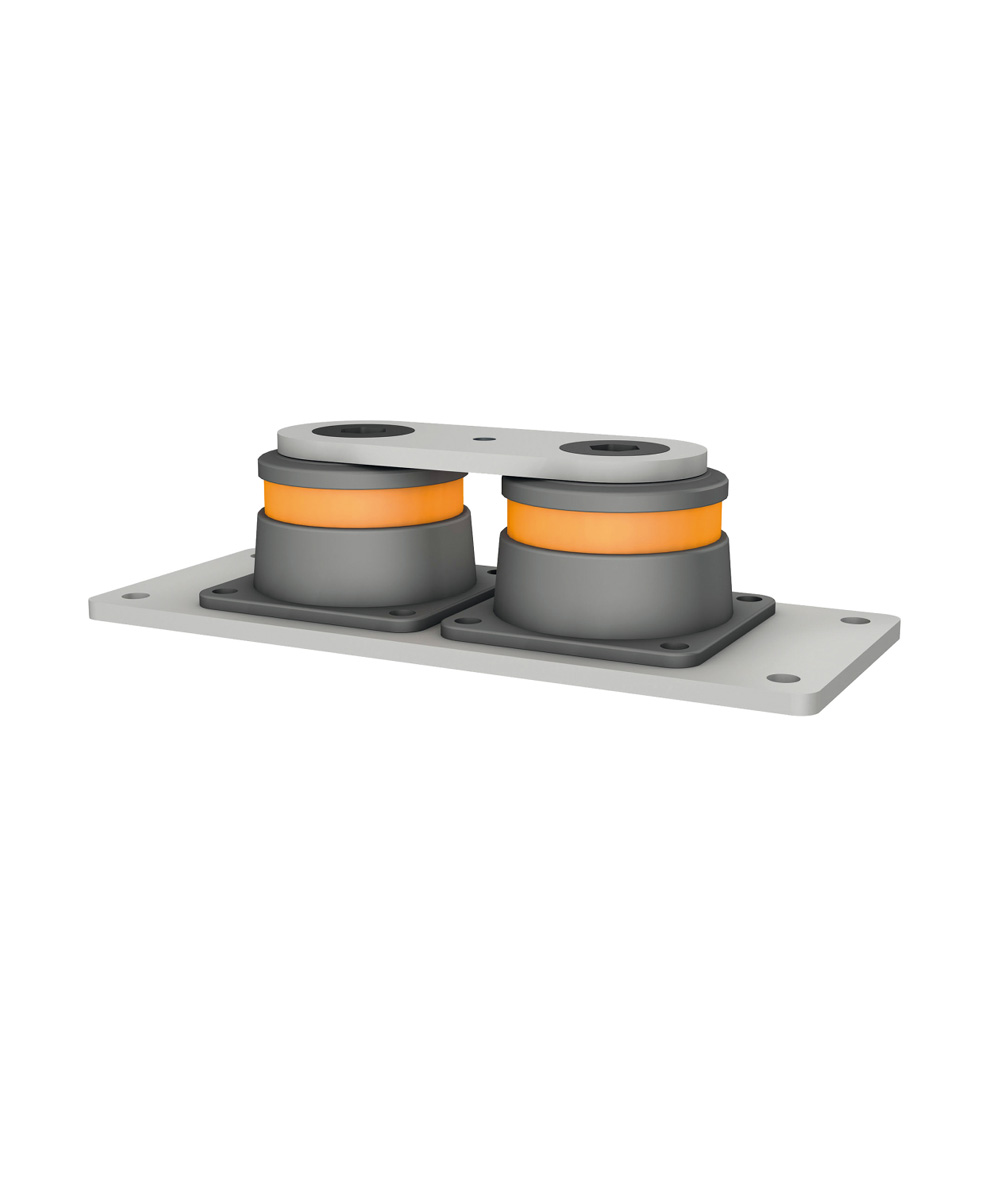

- Block element made from push-pull elements for load ranges between 1635 kg and 4135 kg.

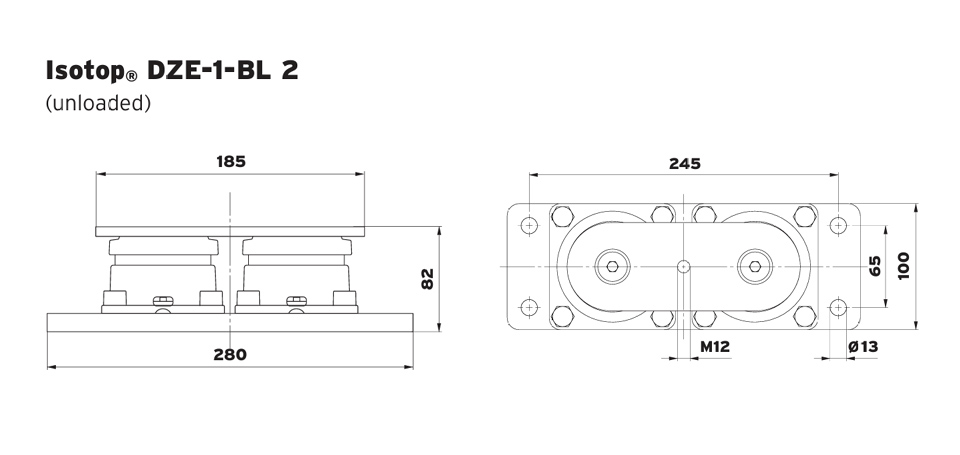

- Height 82 mm (DZE-1) without anti-slip mat.
- Natural frequency from 7.7 Hz.
- Stainless steel housing for ultimate corrosion protection. Contact us for further information and enquiries.
Isotop® DZE-1 BL Force in N
Isotop® DZE-1 BL Natural frequency in Hz
