Tabular data and specifications
Isotop DZE-2 Pressure-Tension Element |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
||
|---|---|---|---|---|---|---|
 |
in Kg | in N | ||||
| Isotop DZE-2-NB-SP | Double Layer | 24 | 236 | 7.5 Hz | 39442 | £134.70 |
| Isotop DZE-2-NC-SP | Double Layer | 46 | 452 | 7.0 Hz | 39620 | £134.70 |
| Isotop DZE-2-ND-SP | Double Layer | 97 | 952 | 7.1 Hz | 39621 | £134.70 |
| Isotop DZE-2-NE-SP | Double Layer | 166 | 1,629 | 7.0 Hz | 39622 | £134.70 |
| Isotop DZE-2-HLL-SP5 | Double Layer | 630 | 6,180 | 8.1 Hz | 39623 | £173.80 |
| Isotop DZE-2-HLH-SP5 | Double Layer | 820 | 8,044 | 7.7 Hz | 39624 | £195.45 |

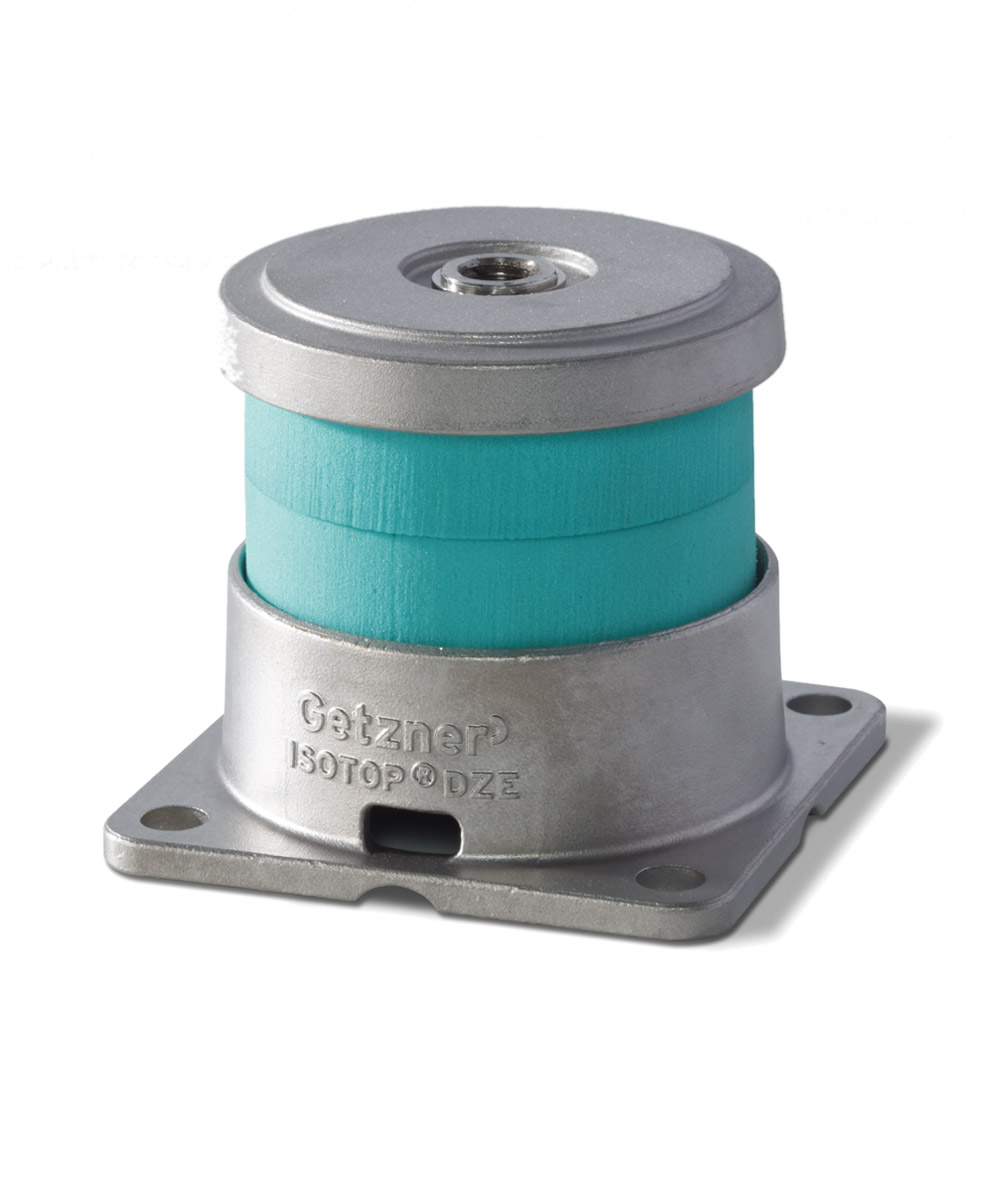

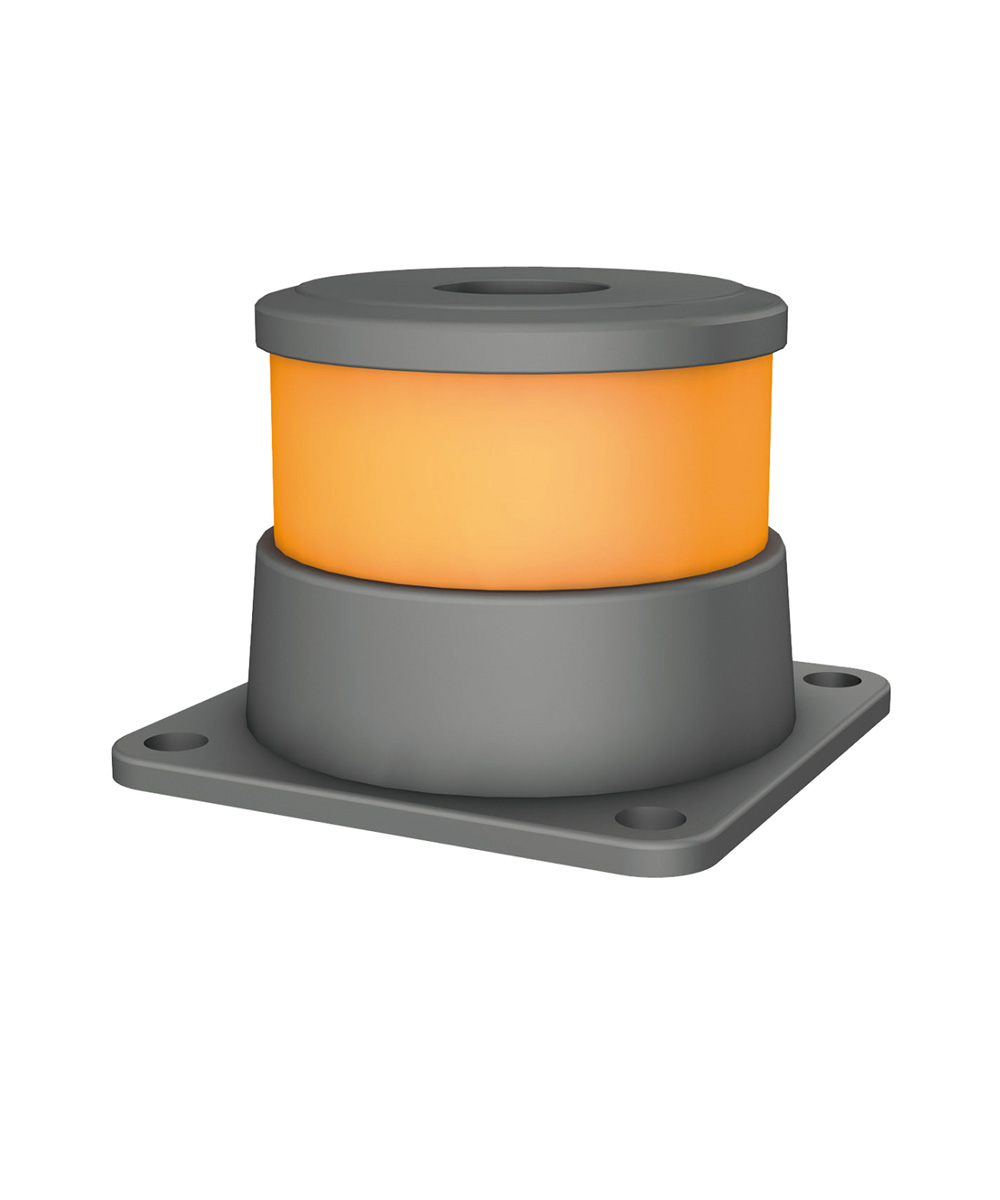

Isotop® DZE-2 pressure-tension elements
Isotop DZE-2 pressure-tension elements are special components developed to absorb both pressure and tensile forces. They are used in a wide range of applications involving both dynamic and static loads. Push-pull elements are used in many sectors, such as machine engineering and the building and construction industry. They are made from high-strength materials like steel, aluminium or specialised composite materials. These materials ensure a high load-bearing capacity and long service life. Elastomers are used as an isolating layer, which ensures effective vibration isolation and impact damping.
Isotop® pressure-tension elements are impressive
- Effective vibration damping and isolation of vibrations.
- High stability.
- Versatile application options.
- High-quality stainless steel housing for durability and resistance.
The right Isotop® DZE 2 pressure-tension element for every application
- Pressure-tension element with high-performance damper for load ranges between 24 kg and 1030 kg.

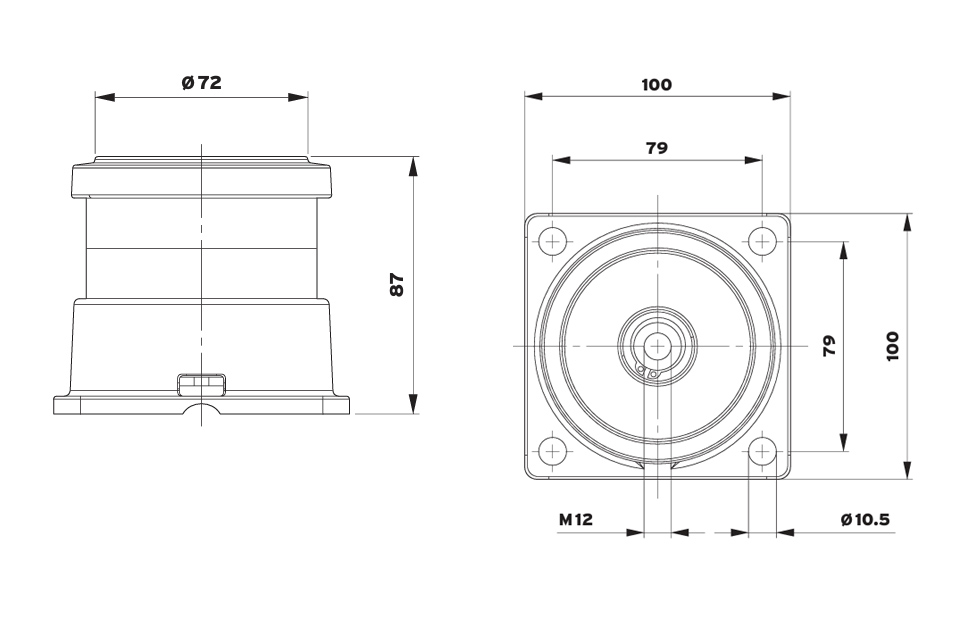

- Height 87 mm.
- Natural frequency from 7 Hz.
- Stainless steel housing for ultimate corrosion protection. Contact us for further information and enquiries.
Isotop® DZE-2 Force in N
Isotop® DZE-2 Natural frequency in Hz
