Tabular data and specifications
Isotop DZE Mini Pressure-Tension Element |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
|
|---|---|---|---|---|---|
 |
in Kg | in N | |||
| Isotop DZE Mini NB SP1 | 8 | 79 | 11.3 Hz | 49217 | £68.00 |
| Isotop DZE Mini NC SP1 | 17 | 167 | 10.7 Hz | 49218 | £68.00 |
| Isotop DZE Mini ND SP3 | 35 | 373 | 9.6 Hz | 49219 | £68.00 |
| Isotop DZE Mini NE SP3 | 60 | 589 | 9.9 Hz | 49220 | £68.00 |
| Isotop DZE Mini NF SP3 | 100 | 981 | 9.8 Hz | 49221 | £76.00 |
| Isotop DZE Mini HRB 3 SP3 | 230 | 2,256 | 11.6 Hz | 49222 | £76.00 |

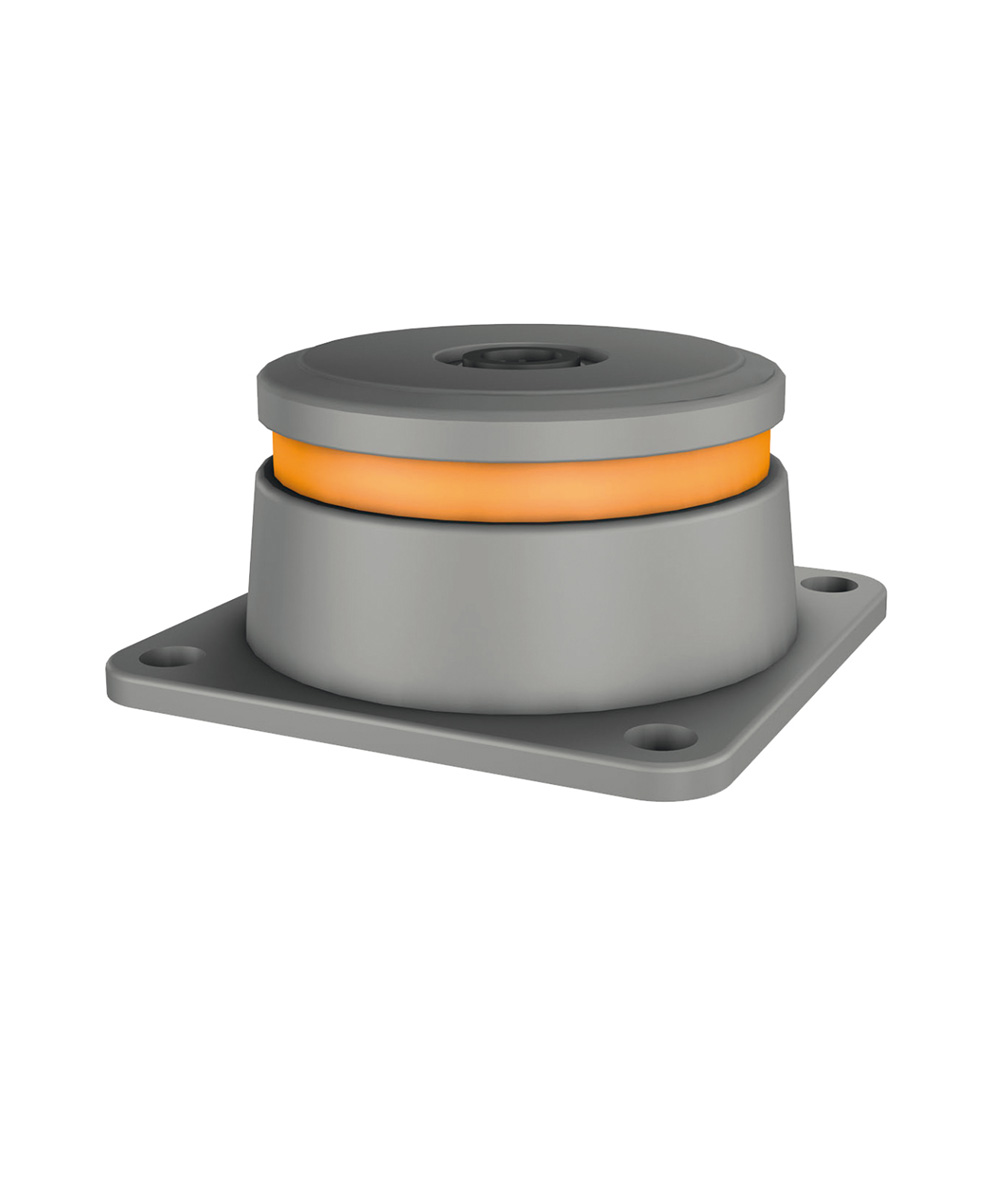

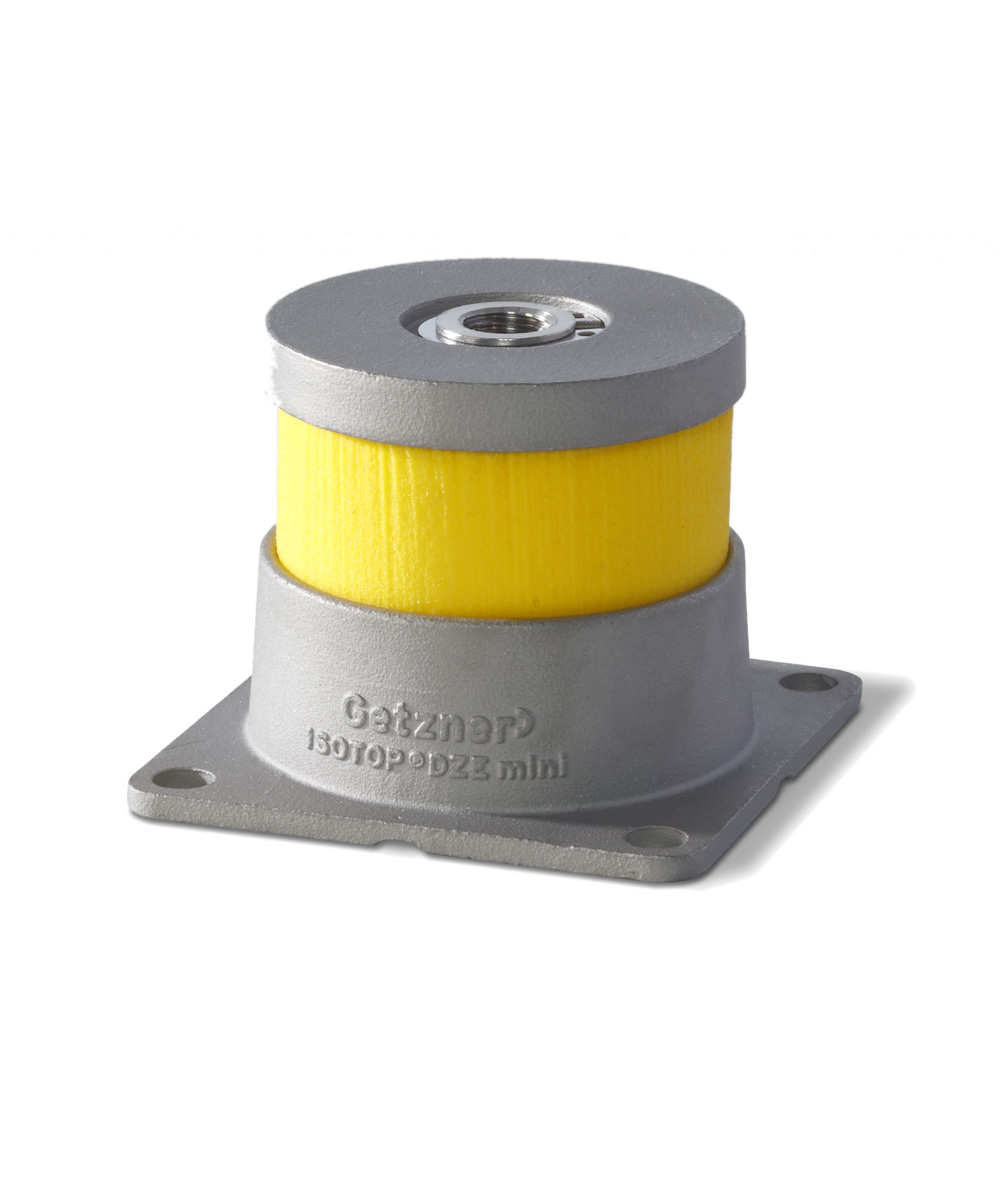

Isotop® DZE Mini pressure-tension elements
Isotop DZE Mini pressure-tension elements are special components developed to absorb both pressure and tensile forces. They are used in a wide range of applications involving both dynamic and static loads. Push-pull elements are used in many sectors, such as machine engineering and the building and construction industry. They are made from high-strength materials like steel, aluminium or specialised composite materials. These materials ensure a high load-bearing capacity and long service life. Elastomers are used as an isolating layer, which ensures effective vibration isolation and impact damping.
Isotop® pressure-tension elements are impressive
- Effective vibration damping and isolation of vibrations.
- High stability.
- Versatile application options.
- High-quality stainless steel housing for durability and resistance.
The right Isotop® DZE Mini pressure-tension element for every application
- Pressure-tension element with high-performance damper for load ranges between 8 kg and 230 kg.

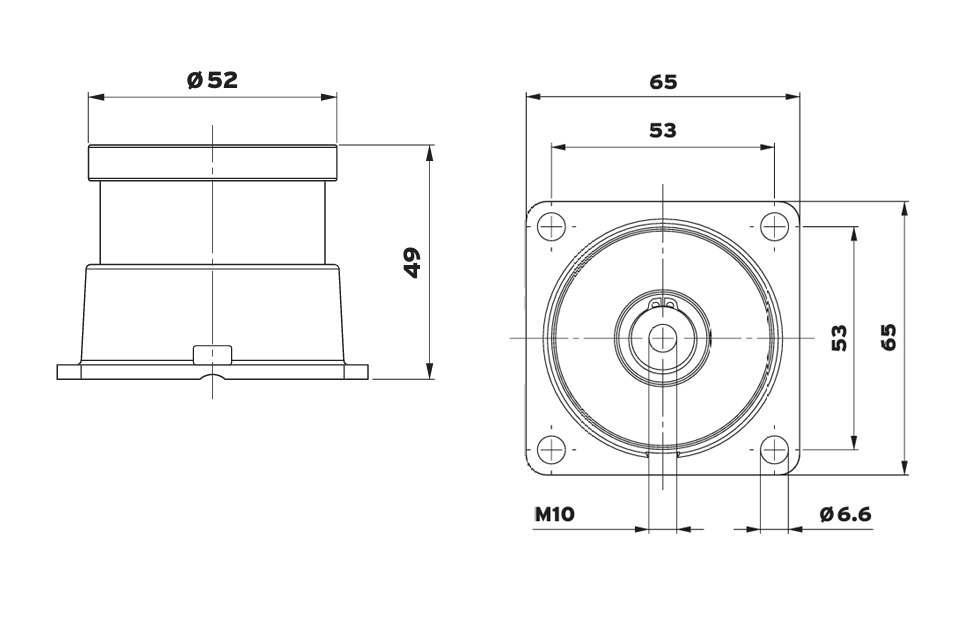

- Height 49 mm.
- Natural frequency from 9,6 Hz.
- Stainless steel housing for ultimate corrosion protection. Contact us for further information and enquiries.
Isotop® DZE Mini Force in N
Isotop® DZE Mini natural frequency in Hz
