Tabular data and specifications
Isotop ENI Machine Mounting |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
|
|---|---|---|---|---|---|
 |
in Kg | in N | |||
| Isotop ENI-60-25-80 (M10) | 61 | 598 | 10.7 Hz | 45150 | £18.95 |
| Isotop ENI-115-25-80 (M10) | 115 | 1,128 | 10.9 Hz | 45152 | £20.25 |
| Isotop ENI-175-25-80 (M10) | 176 | 1,726 | 10.8 Hz | 45154 | £23.15 |
| Isotop ENI-285-25-80 (M10) | 260 | 2,551 | 9.7 Hz | 45155 | £26.10 |

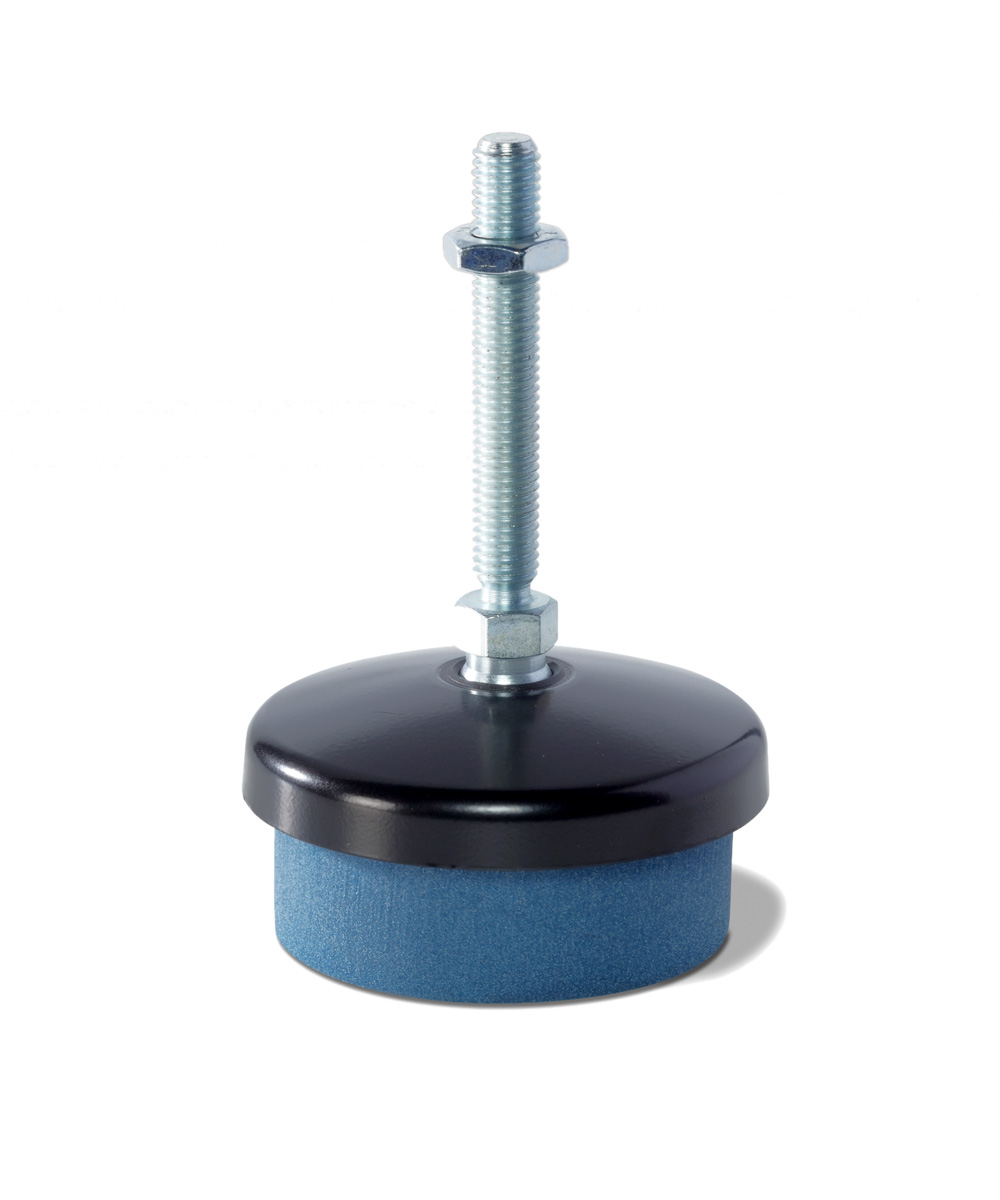

Isotop® machine anti-vibration mounts
Isotop ENI Machine anti vibration mounts are required for installing and operating machines and systems. Their main function is to level out and stabilise the machines. Precise levelling ensures that the machine is stable and in the correct position, which is essential for smooth and efficient operation. Stable machine anti vibration mounts also help to keep the machine securely in position, which prevents accidents and damage.
Isotop® machine mountings are impressive
- Effective damping due to high-quality polyurethane.
- High chemical resistance to consumables.
- Simple and precise height adjustment for optimum machine stability.
The right Isotop® ENI machine mount for every application
- Machine mounting for load ranges between 61 kg and 260 kg.

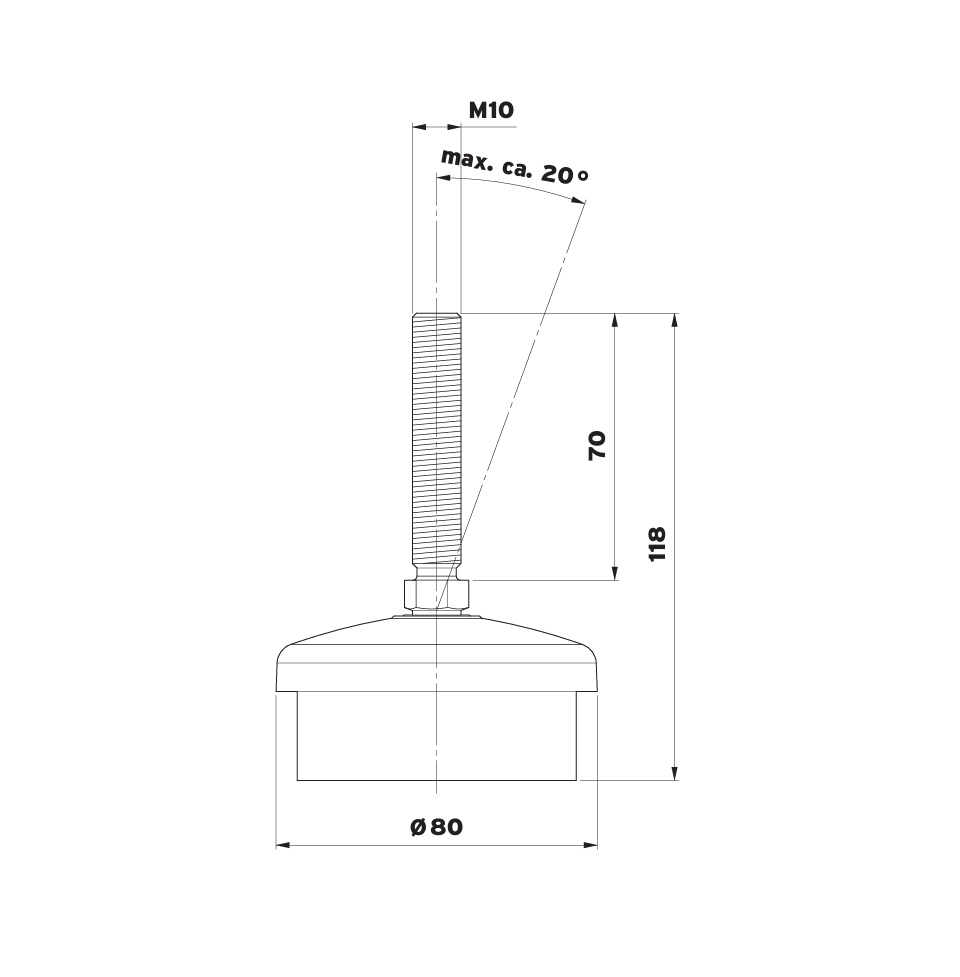

- Overall height 118 mm.
- Natural frequency from 9,7 Hz.
- Ball-and-socket joint to compensate for uneven floors and sloping.
- M10 internal thread. Contact us for further information and enquiries.
Isotop® ENI 60-25-80
Isotop® ENI 115-25-80
Isotop® ENI 175-25-80
Isotop® ENI 285-25-80
