Tabular data and specifications
Isotop Type MSN BL Steel Spring Block Element |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
|
|---|---|---|---|---|---|
 |
in Kg | in N | |||
| Isotop MSN-BL4-52/62 | 117 | 1,147 | 3.5 Hz | 47289 | £139.90 |
| Isotop MSN-BL4-74/80 | 212 | 2,079 | 3.5 Hz | 47293 | £139.90 |
| Isotop MSN-BL4-70/84 | 360 | 3,531 | 3.5 Hz | 47292 | £139.90 |
| Isotop MSN-BL6-72/84 | 465 | 4,561 | 3.5 Hz | 47295 | £198.90 |
| Isotop MSN-BL6-70/86 | 535 | 5,248 | 3.5 Hz | 47294 | £198.90 |
| Isotop MSN-BL9-73/86 | 695 | 6,817 | 3.5 Hz | 47297 | £288.05 |
| Isotop MSN-BL9-70/89 | 800 | 7,848 | 3.5 Hz | 47296 | £288.05 |

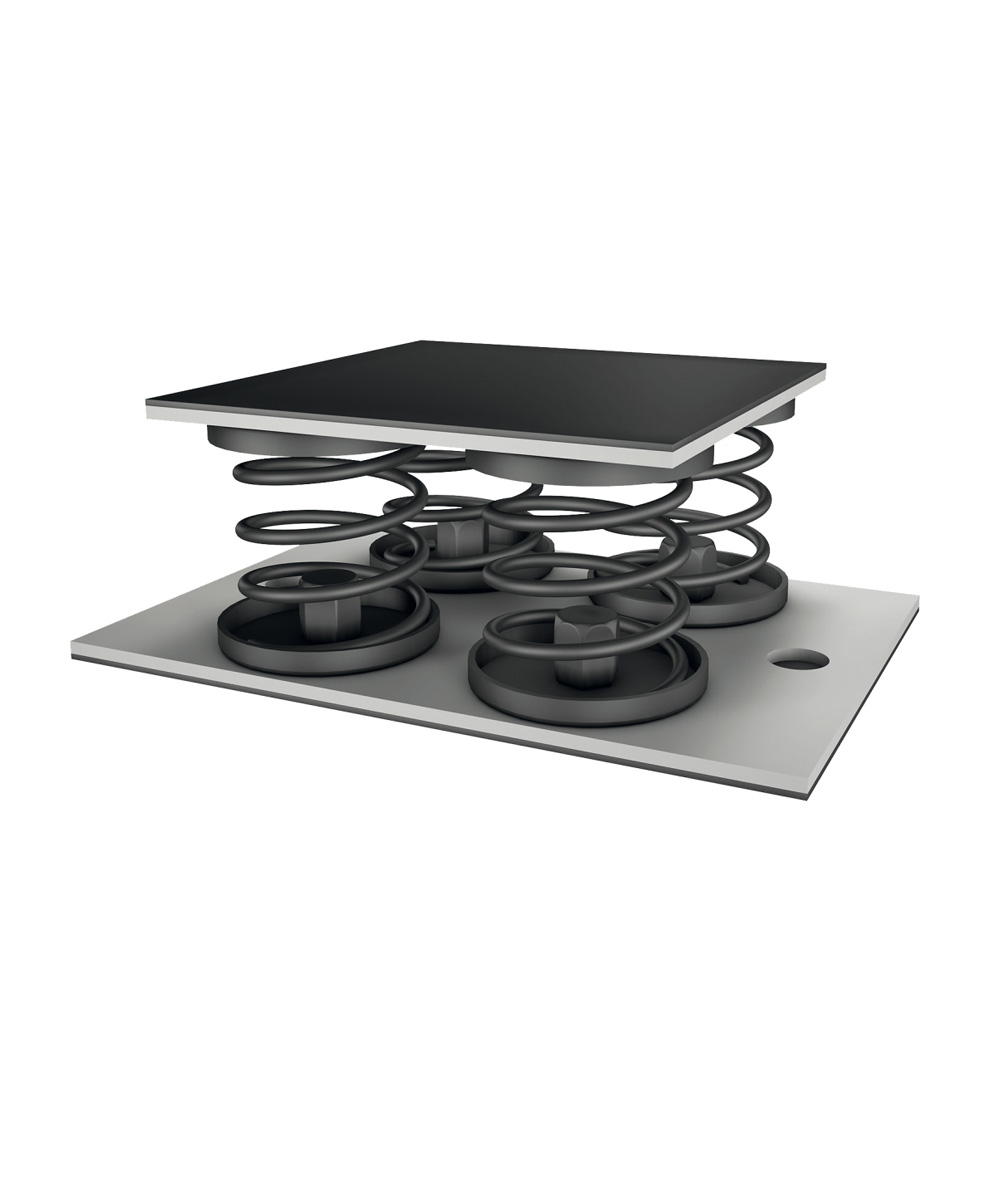

Isotop® MSN BL Steel springs
Using Isotop MSN-BL Steel Spring Block Elements as vibration-isolating elements brings many advantages, which can significantly improve both the performance and reliability of isolated devices. Due to their low natural frequency, anti-vibration spring mounts have excellent isolation properties and are particularly suitable for machines such as fans or ventilators that exhibit low-frequency disturbing frequencies. The spring elements are designed to dampen vibrations and absorb shocks in a vertical direction. They are widely used in the automotive industry, in machine engineering and in the building sector.
Isotop MSN BL Steel spring blocks are impressive
- Low natural frequency provides the highest levels of vibration isolation.
- Best for applications with low excitation frequencies in industrial environments.
- Consistent overall height within one product range enables maximum flexibility.
The right Isotop® MSN-BL Steel springs for every application
- Block element made from steel spring isolators for load ranges between 117 kg and 800 kg.
- Overall height 75 mm.
- Natural frequency from 3.5 Hz.
- Combination of 4 Isotop® MSN.
- Cathodic dip-painted for high levels of corrosion protection and powder-coated pressure distribution plate. Contact us for further information and enquiries.

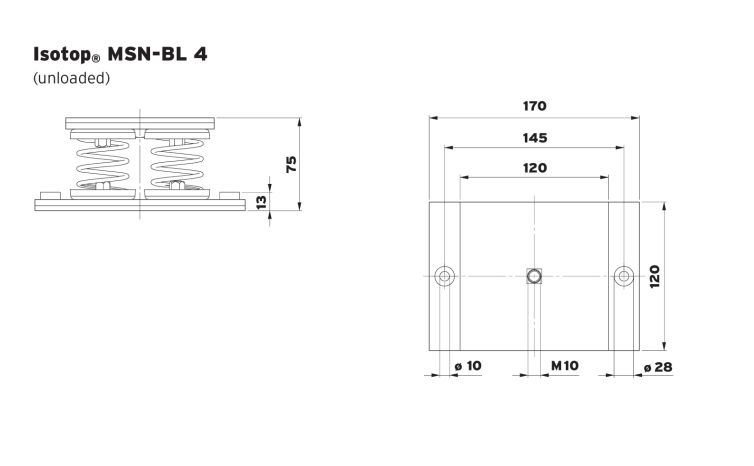

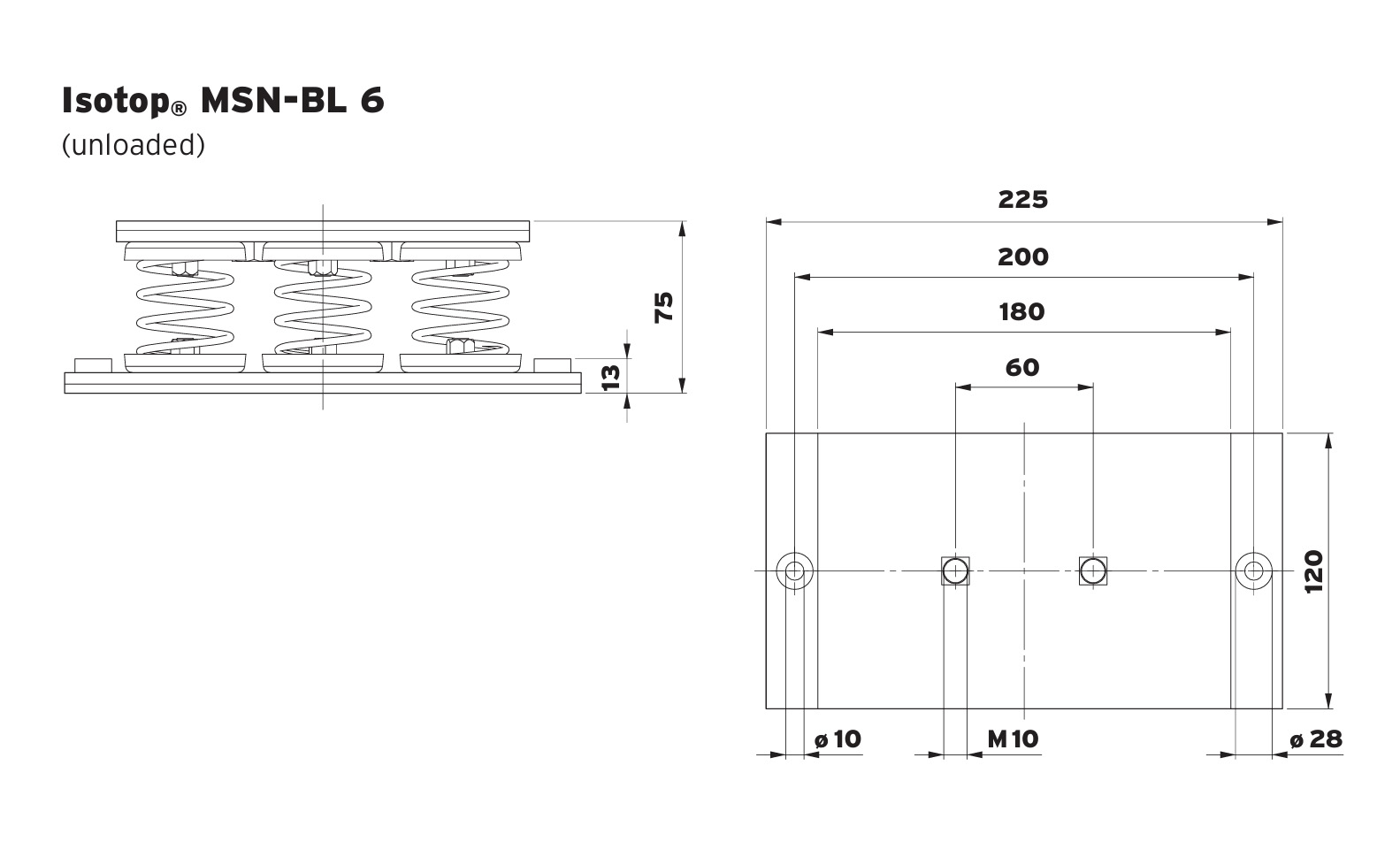

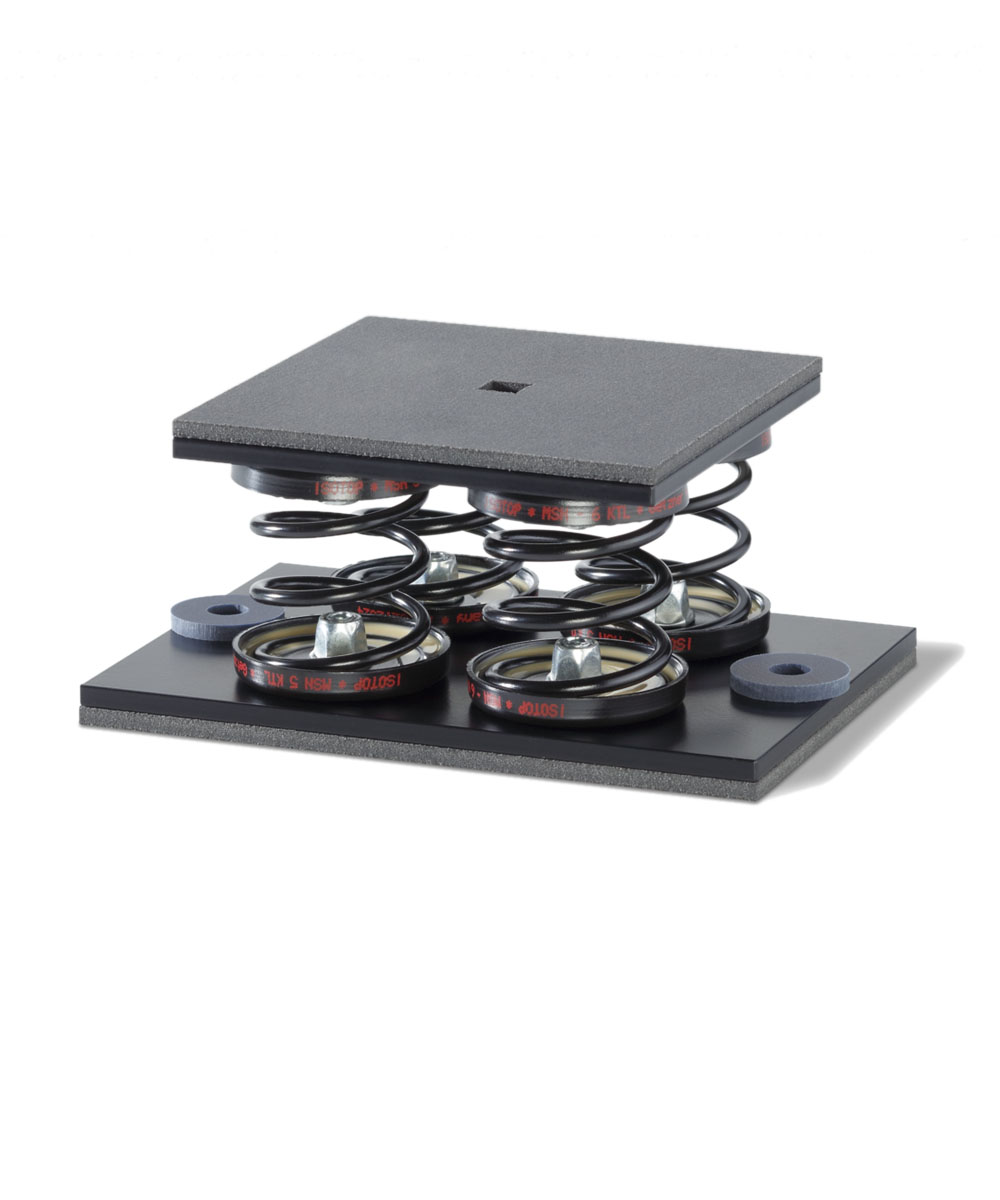

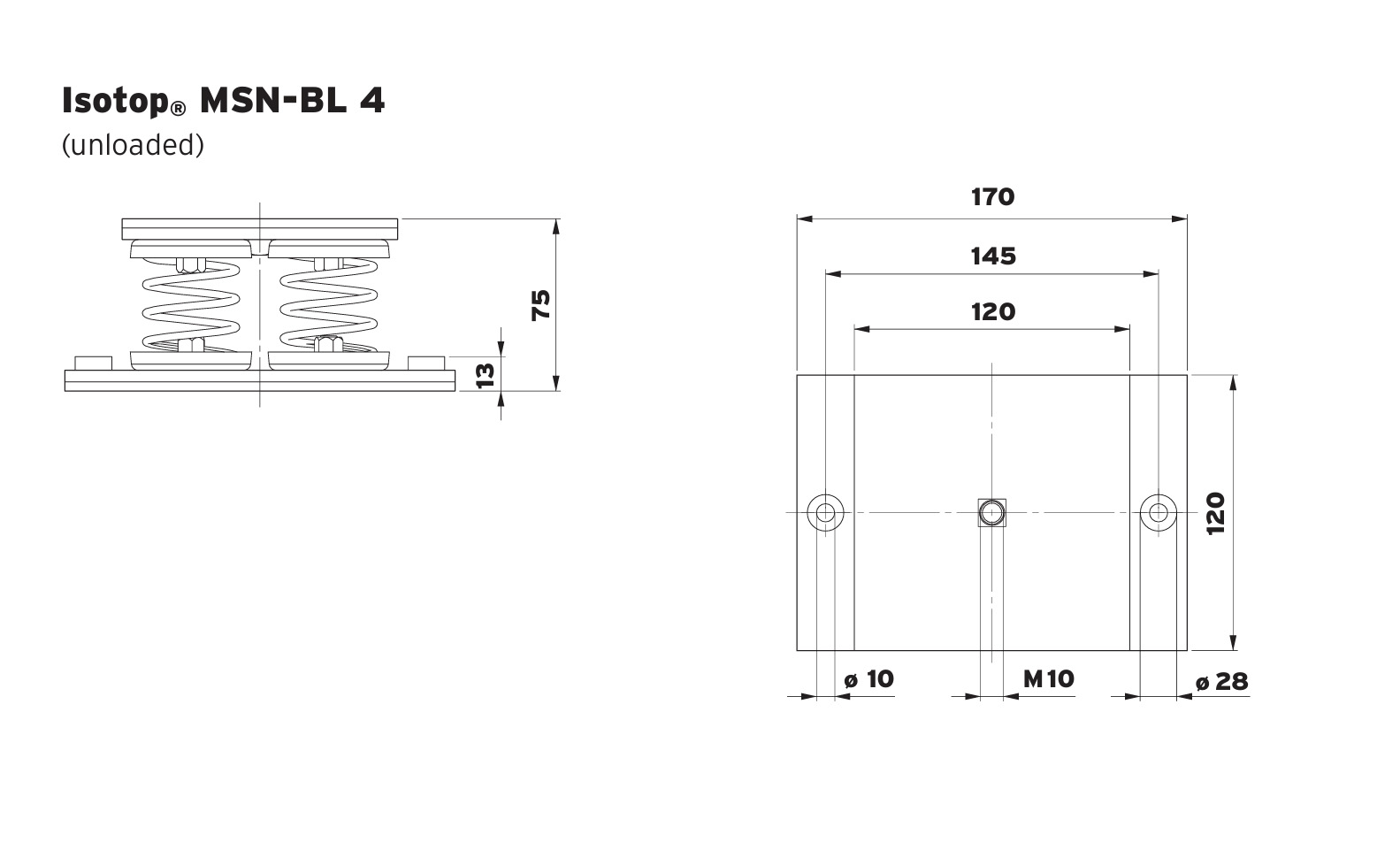

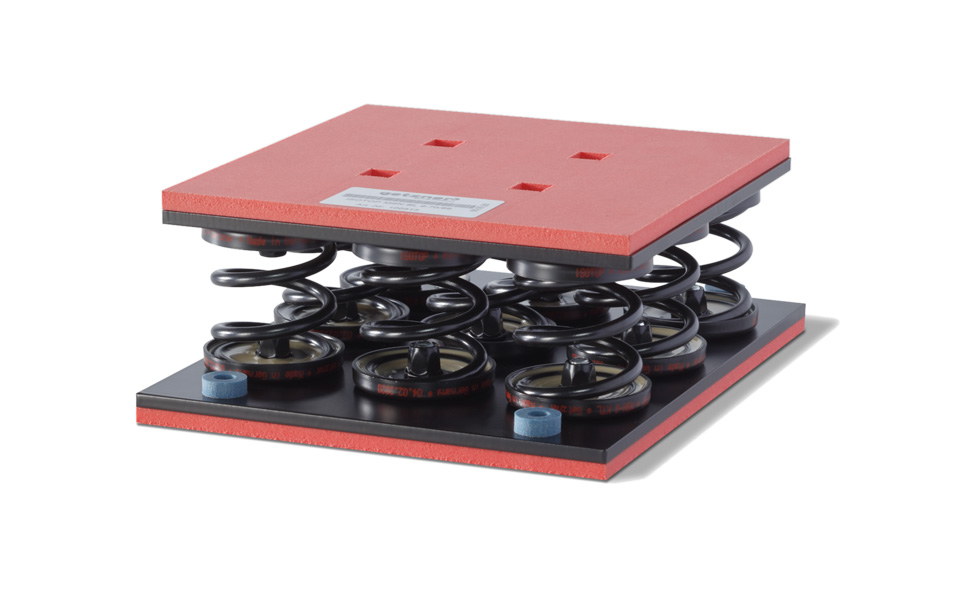

Isotop® MSN-BL 4 + MSN-BL 6

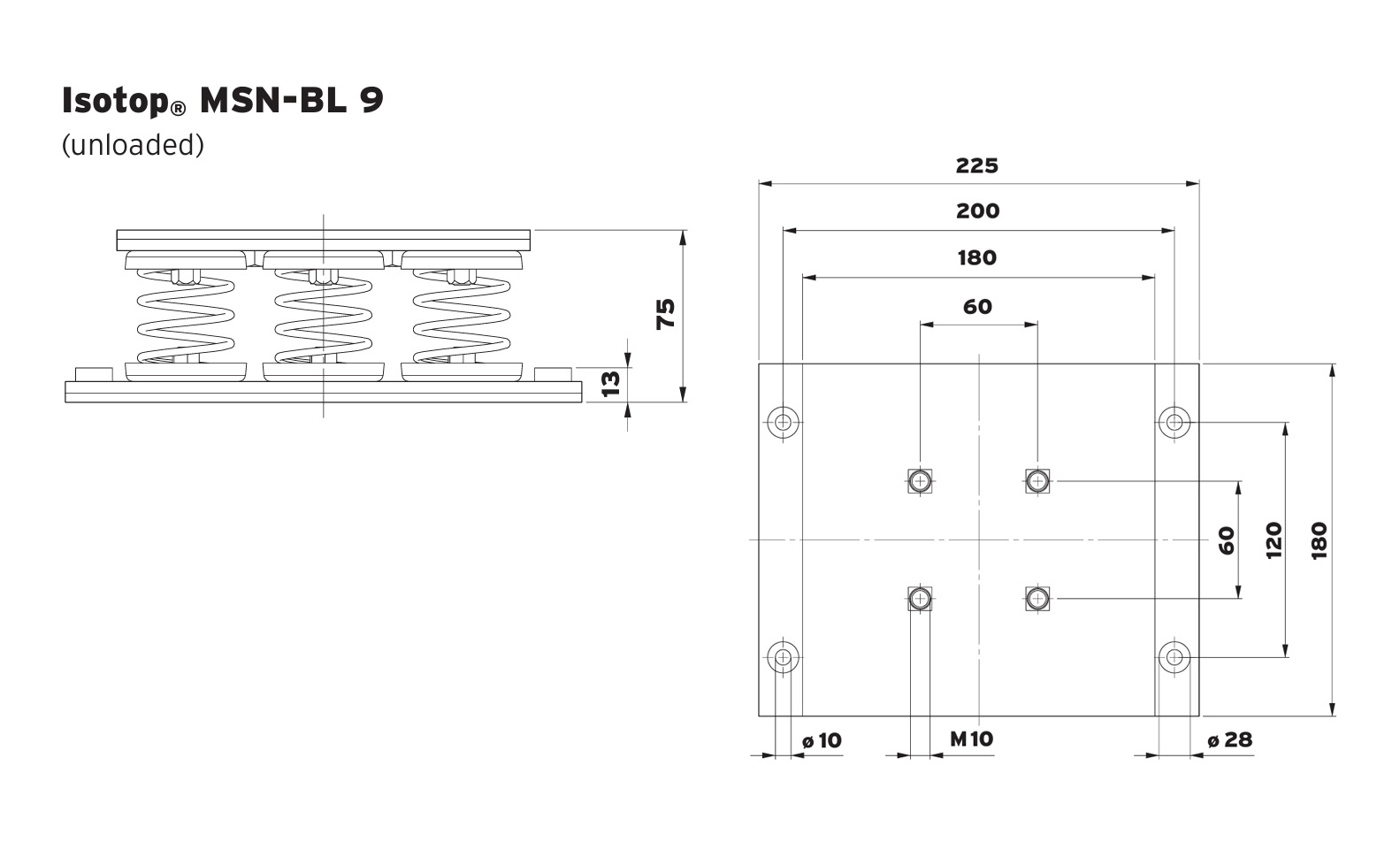

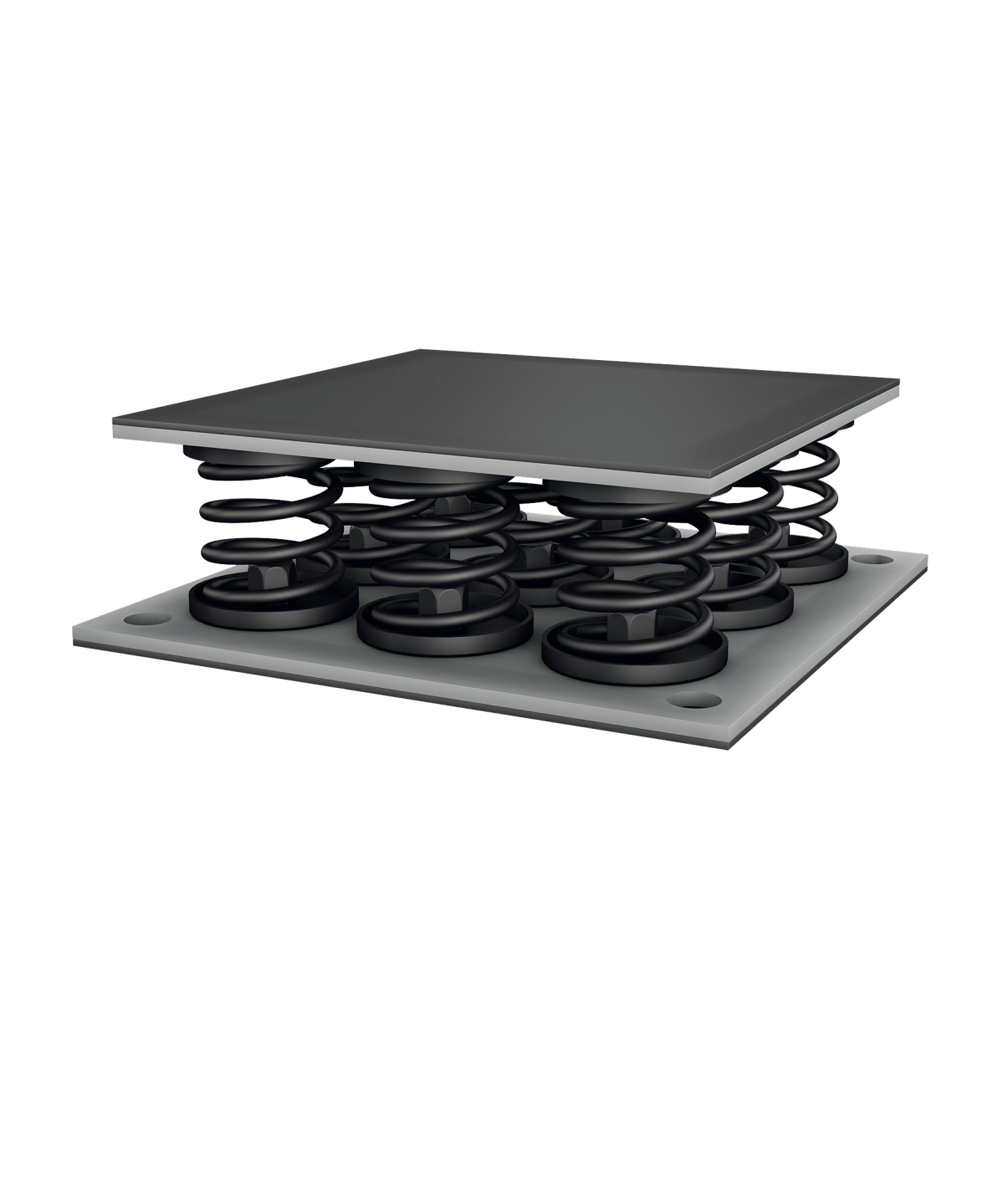

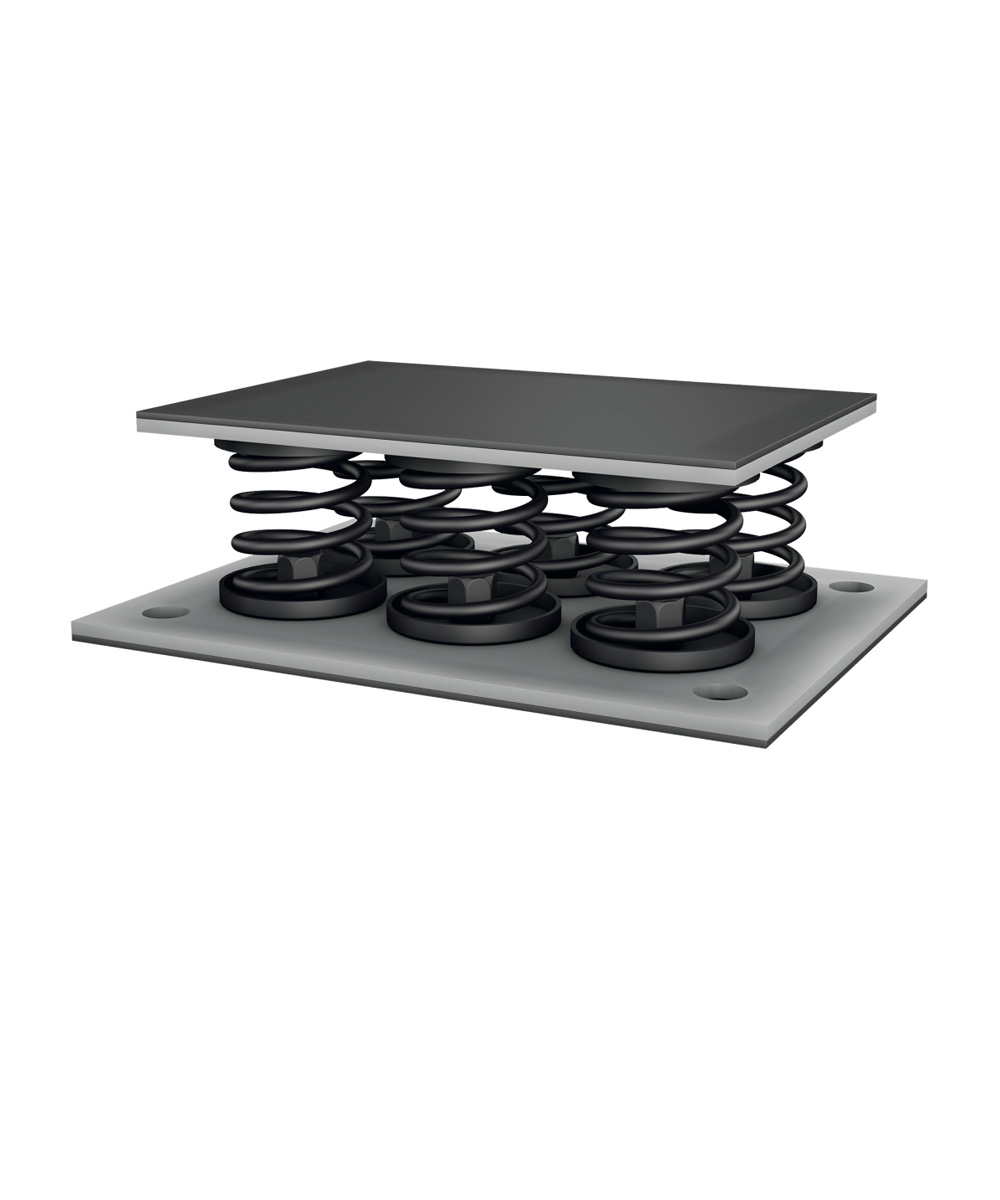

Isotop® MSN-BL 6 + MSN–BL 9
