Tabular data and specifications
Isotop MSN-Damp B/T Vibration Damper |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
|
|---|---|---|---|---|---|
 |
in Kg | in N | |||
| Isotop MSN-DAMP-70 B/T | 6 | 59 | 8.6 Hz | 49784 | £15.00 |
| Isotop MSN-DAMP-110 B/T | 10 | 98 | 9.2 Hz | 41715 | £14.60 |
| Isotop MSN-DAMP-170 B/T | 19 | 187 | 7.9 Hz | 41716 | £14.60 |
| Isotop MSN-DAMP-280 B/T | 25 | 246 | 7.4 Hz | 49777 | £15.00 |
| Isotop MSN-DAMP-350 B/T | 35 | 343 | 8.1 Hz | 41717 | £14.60 |

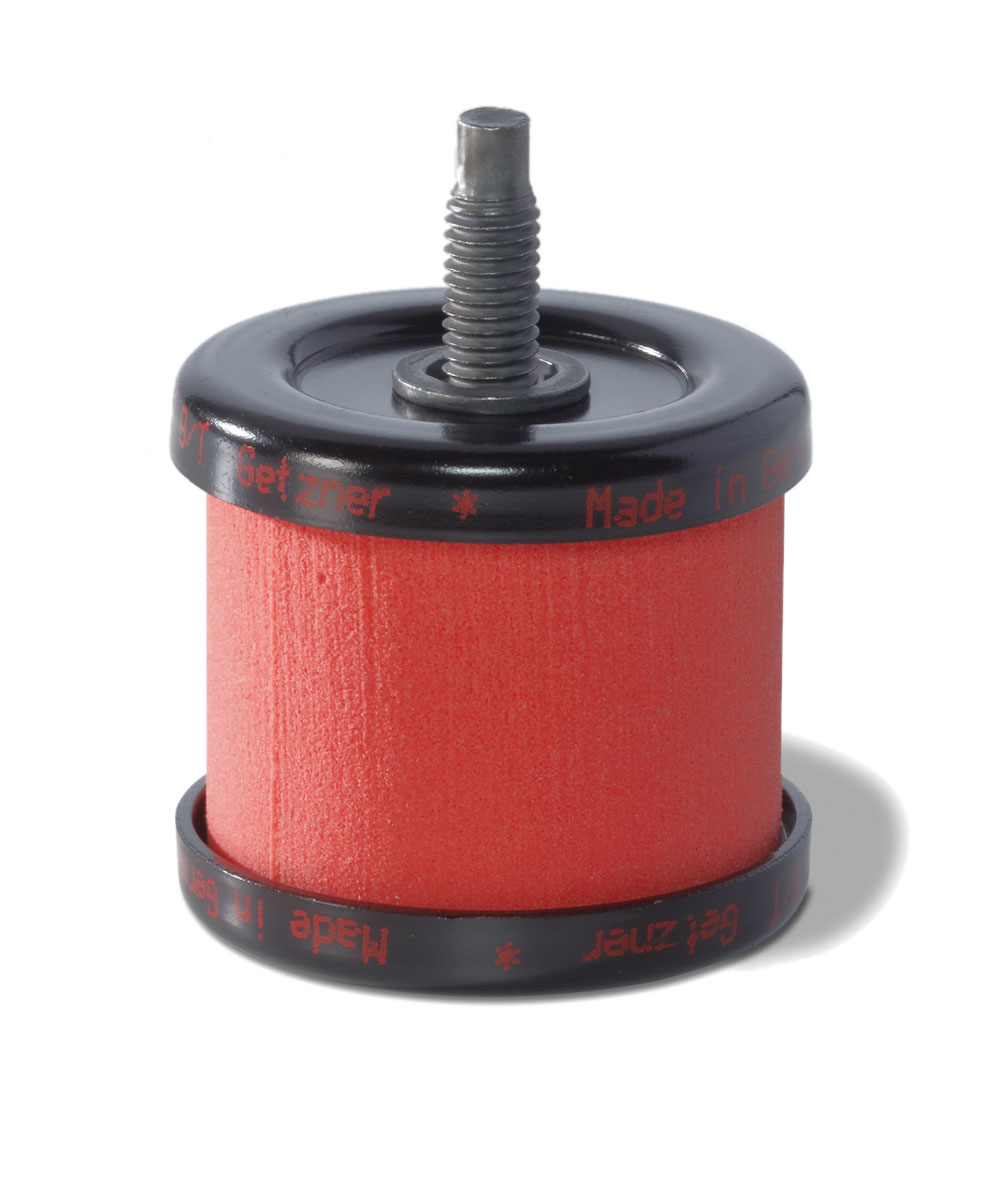

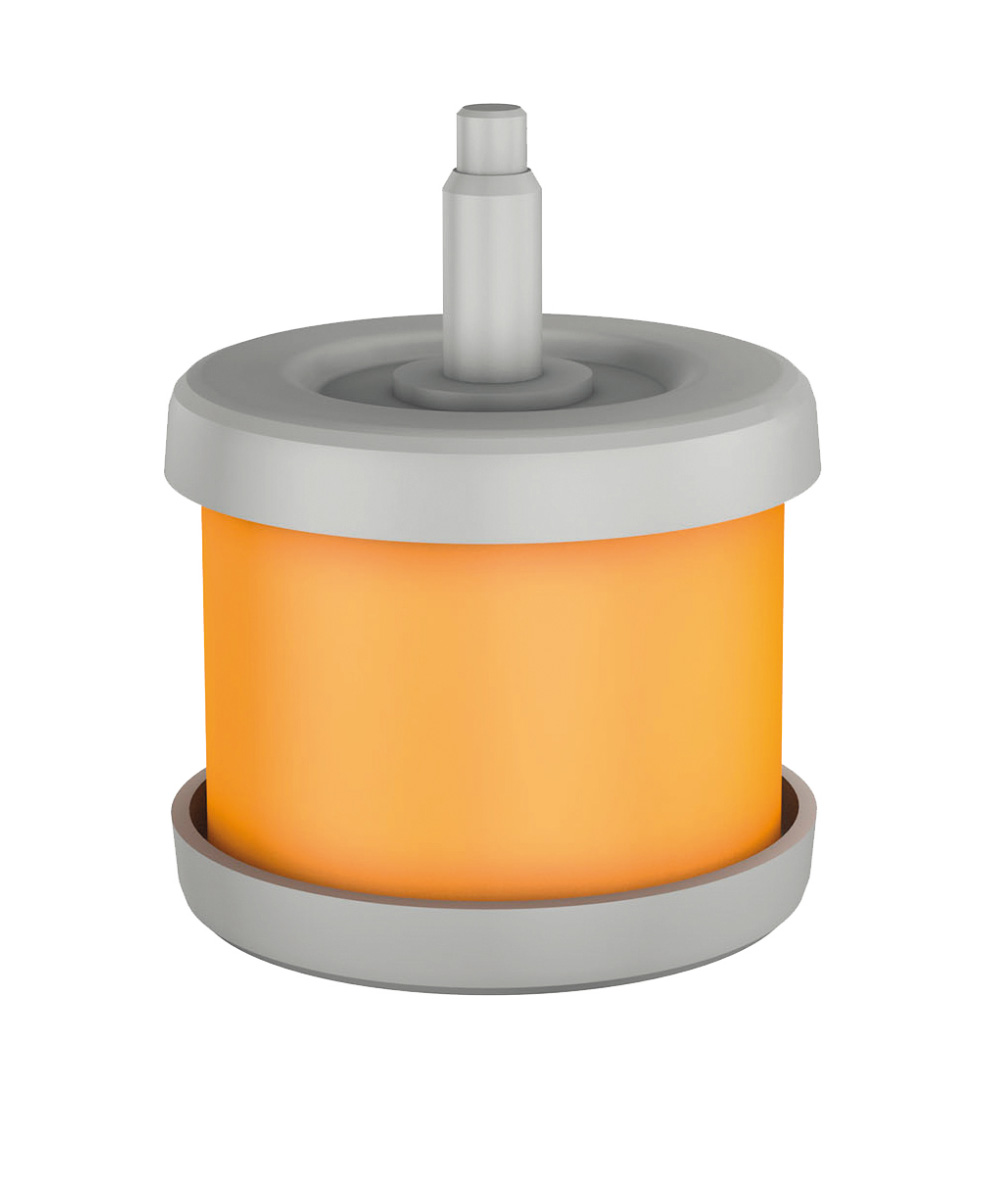

Isotop® MSN-Damp B/T vibration dampers
Isotop MSN-Damp B/T vibration dampers help machines and devices to operate in a quieter and more efficient way. They play a key role when it comes to reducing mechanical vibrations and noise, which are caused by the operation of devices and can be transferred to the building structure and surrounding environment. Without effective vibration dampers, these vibrations lead to unpleasant noise disturbance and potential damage to the structure of the building. Vibration dampers absorb these vibrations and prevent them from being transferred to the building, which prolongs the service life of the device and increases comfort levels in both living and working areas.
Isotop® vibration dampers are impressive
- Optimum stability at a low natural frequency.
- Reduction of primary and secondary noise.
- Simple installation and long service life.
The right Isotop® MSN-Damp B/T vibration dampers for every application
- Vibration damper with metal caps and threaded fastening for load ranges up to 35 kg.
- Overall height 45 mm.
- Natural frequency from 7.4 Hz.
- Zinc-nickel coating for high corrosion protection.
- M8 internal thread and/or stud bolt.
- Available in three different attaching options. Contact us for further information and enquiries.
Isotop® MSN-Damp 70
Isotop® MSN-Damp 110
Isotop® MSN-Damp 170
Isotop® MSN-Damp 280
Isotop® MSN-Damp 350
