Tabular data and specifications
Isotop SD Steel Spring KTL (CDC) |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
|
|---|---|---|---|---|---|
 |
in Kg | in N | |||
| Isotop SD 1 KTL | 20 | 196 | 3.2 Hz | 39460 | £24.85 |
| Isotop SD 2 KTL | 33 | 324 | 3.2 Hz | 39461 | £25.35 |
| Isotop SD 3 KTL | 52 | 510 | 3.2 Hz | 39062 | £25.75 |
| Isotop SD 4 KTL | 82 | 804 | 3.2 Hz | 39463 | £30.35 |
| Isotop SD 5 KTL | 123 | 1,206 | 3.2 Hz | 39064 | £35.05 |
| Isotop SD 6 KTL | 195 | 1,913 | 3.2 Hz | 39465 | £38.10 |
| Isotop SD 7 KTL | 310 | 3,041 | 3.2 Hz | 39466 | £40.05 |
| Isotop SD 8 KTL | 420 | 4,120 | 3.4 Hz | 39467 | £43.45 |
| Isotop SD 9 KTL | 525 | 5,150 | 3.4 Hz | 39468 | £45.85 |

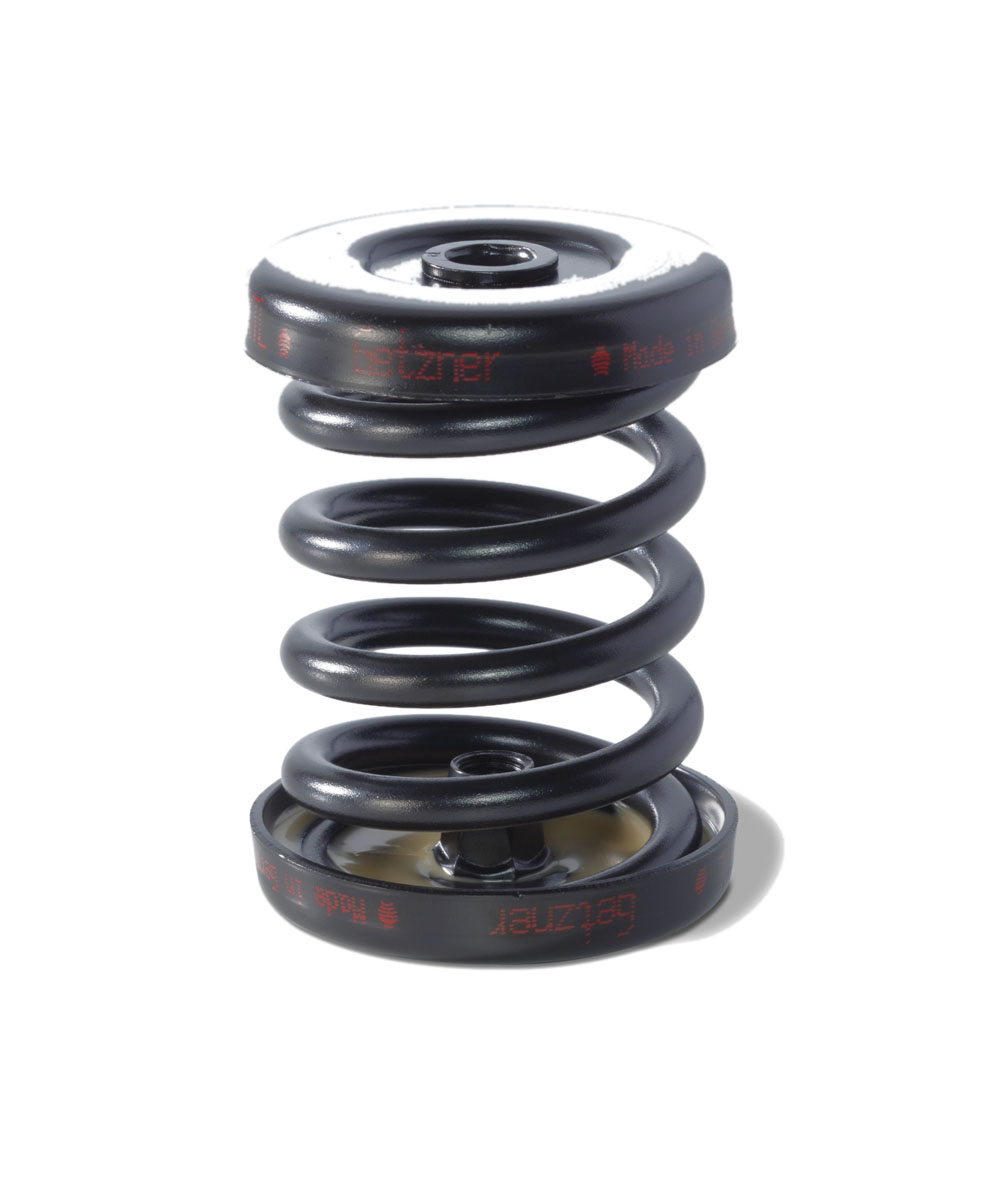

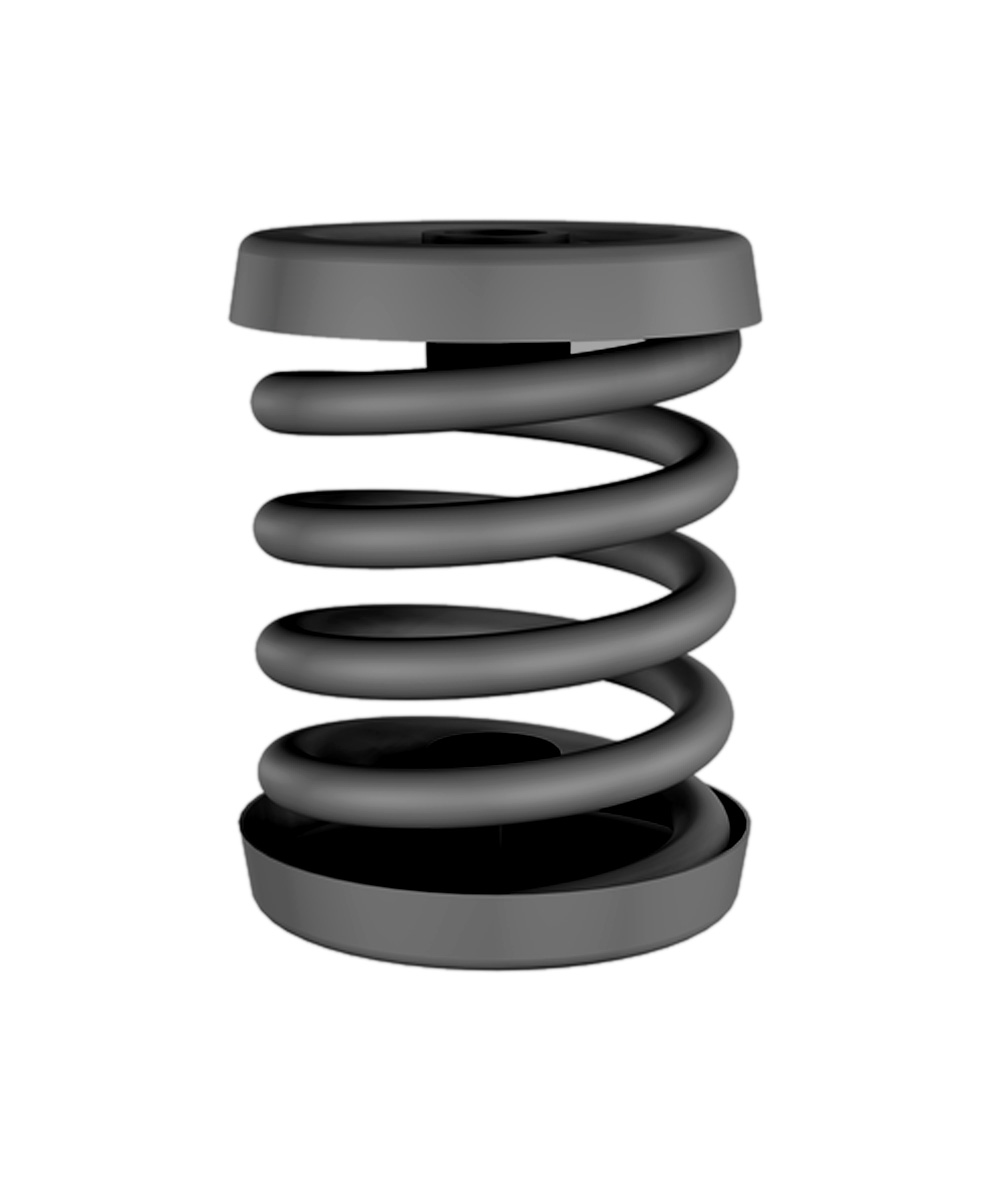

Isotop® Cathodic Dip-Coated (CDC) Steel springs
Using Isotop Cathodic Dip-Coated (CDC) Steel springs as vibration-isolating elements brings many advantages, which can significantly improve both the performance and reliability of isolated devices. Due to their low natural frequency, anti-vibration spring mounts have excellent isolation properties and are particularly suitable for machines such as fans or ventilators that exhibit low-frequency disturbing frequencies. The spring elements are designed to dampen vibrations and absorb shocks in a vertical direction. They are widely used in the automotive industry, in machine engineering and in the building sector.
Isotop® SD Steel springs (CDC) are impressive
- Low natural frequency provides the highest levels of vibration isolation.
- Best for applications with low excitation frequencies in industrial environments.
- Consistent overall height within one product range enables maximum flexibility.
The right Isotop® Steel spring for every application
- Natural frequency from 3.2 Hz.
- Cathodic Dip-Coated (CDC) for increased corrosion protection.
- Secure connection between the plate and the spring thanks to special adhesive.
- M 10 internal thread.
- Suitable base plate and/or height adjustment available.
- Base plate with damping element (FP/K) also isolates higher frequencies.
- Simple load control thanks to open design.
- Spring design conforms to DIN EN 13906–1. Contact us for further information and enquiries.

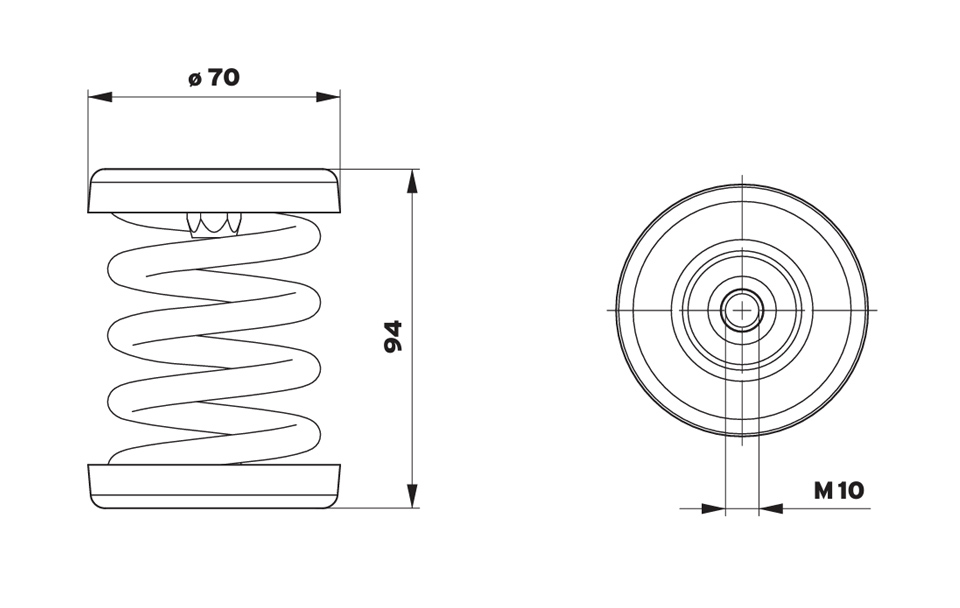

Isotop® SD 1-4
Isotop® SD 5-9
