Tabular data and specifications
Isotop SD/Z Ceiling Hangers |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
|
|---|---|---|---|---|---|
 |
in Kg | in N | |||
| Isotop SD/Z 1 | 20 | 196 | 3.2 Hz | 39547 | £71.75 |
| Isotop SD/Z 2 | 33 | 324 | 3.2 Hz | 39548 | £71.75 |
| Isotop SD/Z 3 | 52 | 510 | 3.2 Hz | 39549 | £71.75 |
| Isotop SD/Z 4 | 82 | 804 | 3.2 Hz | 39550 | £71.75 |
| Isotop SD/Z 5 | 123 | 1,206 | 3.2 Hz | 39551 | £71.75 |
| Isotop SD/Z 6 | 195 | 1,913 | 3.2 Hz | 39552 | £71.75 |
| Isotop SD/Z 7 | 310 | 3,041 | 3.2 Hz | 39553 | £71.75 |
The Isotop SD/Z ceiling hangers are only suitable for use as pipe suspension or for fans in technical building services. This means for water, waste water, water heating systems and ventilation duct construction. For pipes in industrial production processes that are subject to the requirements of EN 13480 or similar national standards regarding pressure equipment, these ceiling hangers are not suitable, as the maximum deflection is limited.

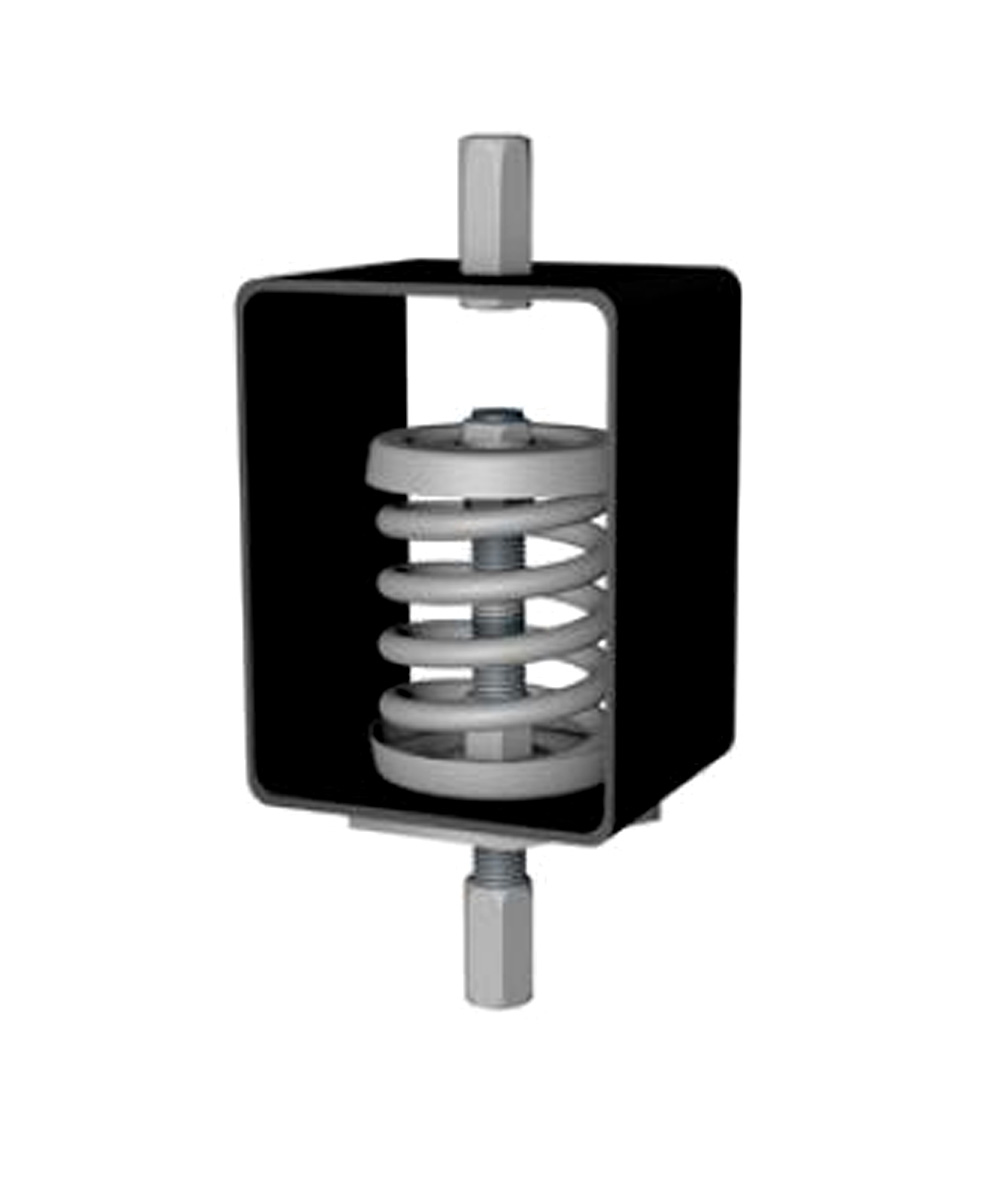

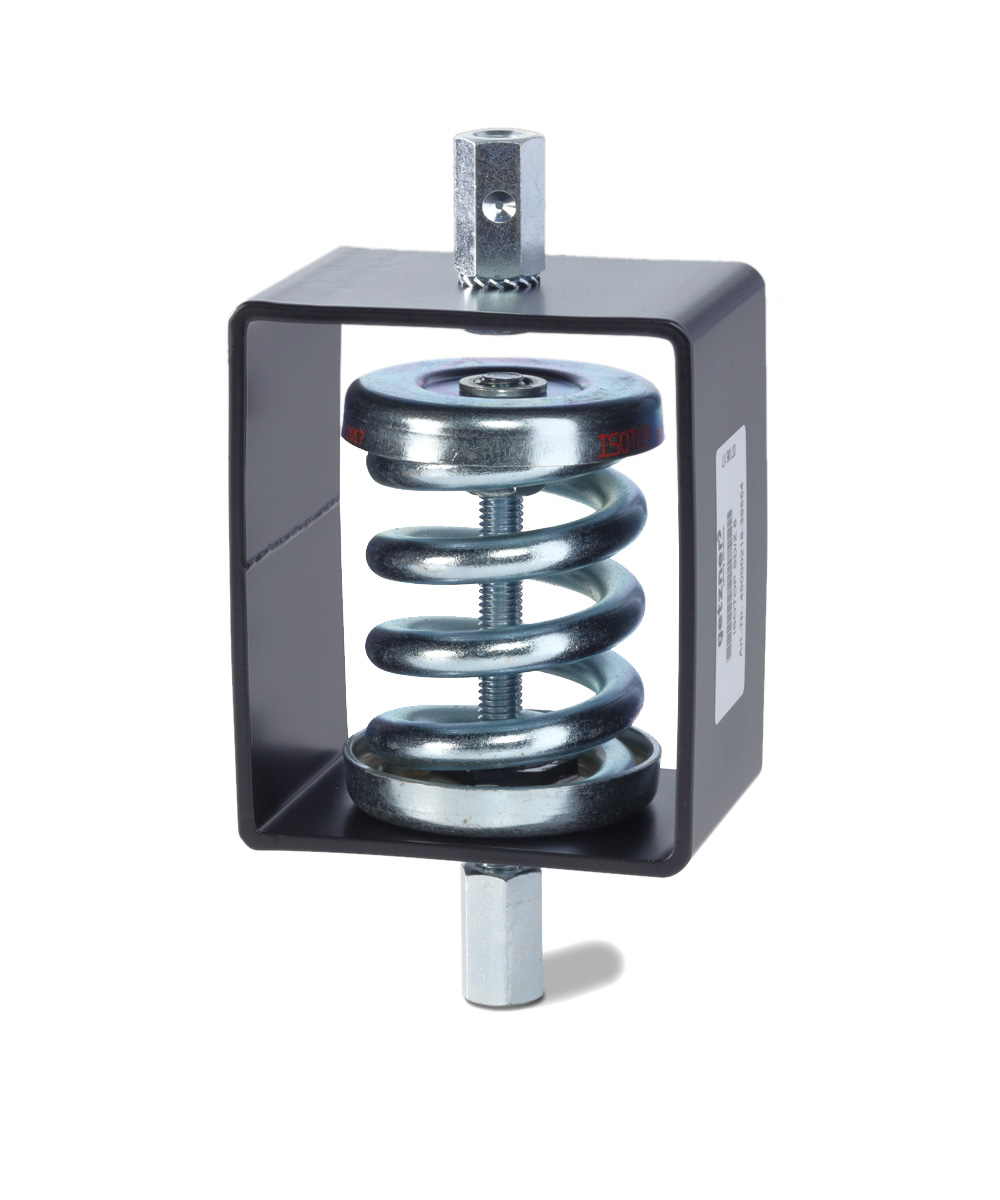

Isotop® anti-vibration ceiling hangers
Isotop anti vibration ceiling hangers are special products used to suspend various components in building services equipment (BSE) systems. The spring hangers provide a robust and secure attachment for pipework, ventilation ducts and other ceiling-mounted components.
Isotop® ceiling hangers are impressive
- High load-bearing capacity and stability.
- Simple and flexible installation with just one attachment point.
- Effective vibration isolation using tried-and-tested steel springs.
The right Isotop® SD/Z ceiling hanger for every application
- Tension element for load ranges between 20 kg and 420 kg.

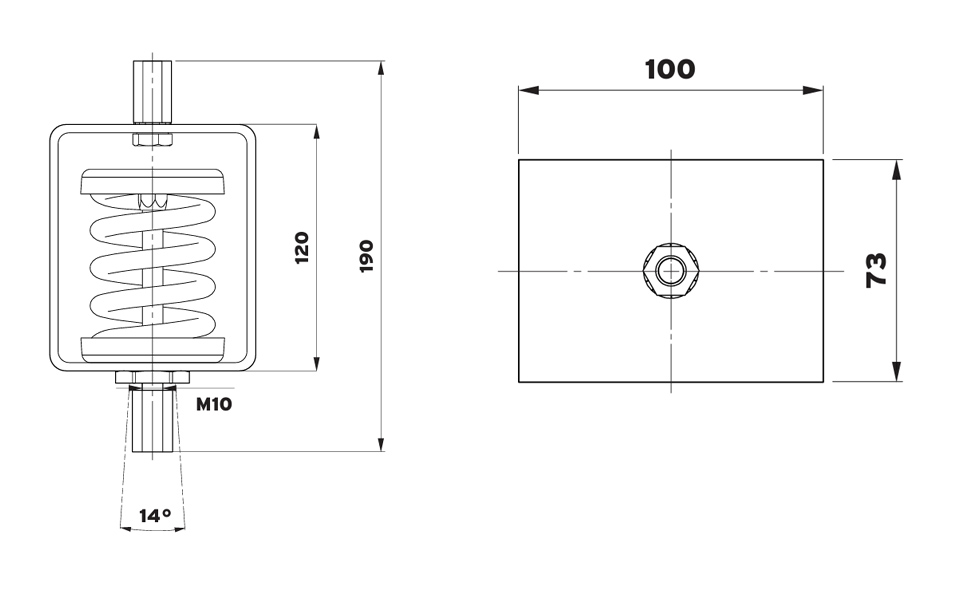

- Overall height 190 mm.
- Natural frequency from 3.2 Hz.
- M10 internal thread. Contact us for further information and enquiries.
