Tabular data and specifications
Isotop SE Light Sandwich Element |
Maximum Load |
Natural Frequency at maximum load |
SKU |
Price £/ Unit |
||
|---|---|---|---|---|---|---|
 |
in Kg | in N | ||||
| Isotop SE light 6-1 | Single Layer | 63 | 618 | 12.7 Hz | 44949 | £53.85 |
| Isotop SE light 12-1 | Single Layer | 123 | 1,206 | 11.7 Hz | 44950 | £55.40 |
| Isotop SE light 24-1 | Single Layer | 240 | 2,304 | 11.8 Hz | 44951 | £61.65 |
| Isotop SE light 47-1 | Single Layer | 470 | 4,610 | 10.8 Hz | 44952 | £66.50 |
| Isotop SE light 93-1 | Single Layer | 930 | 9,123 | 11.0 Hz | 44953 | £71.10 |

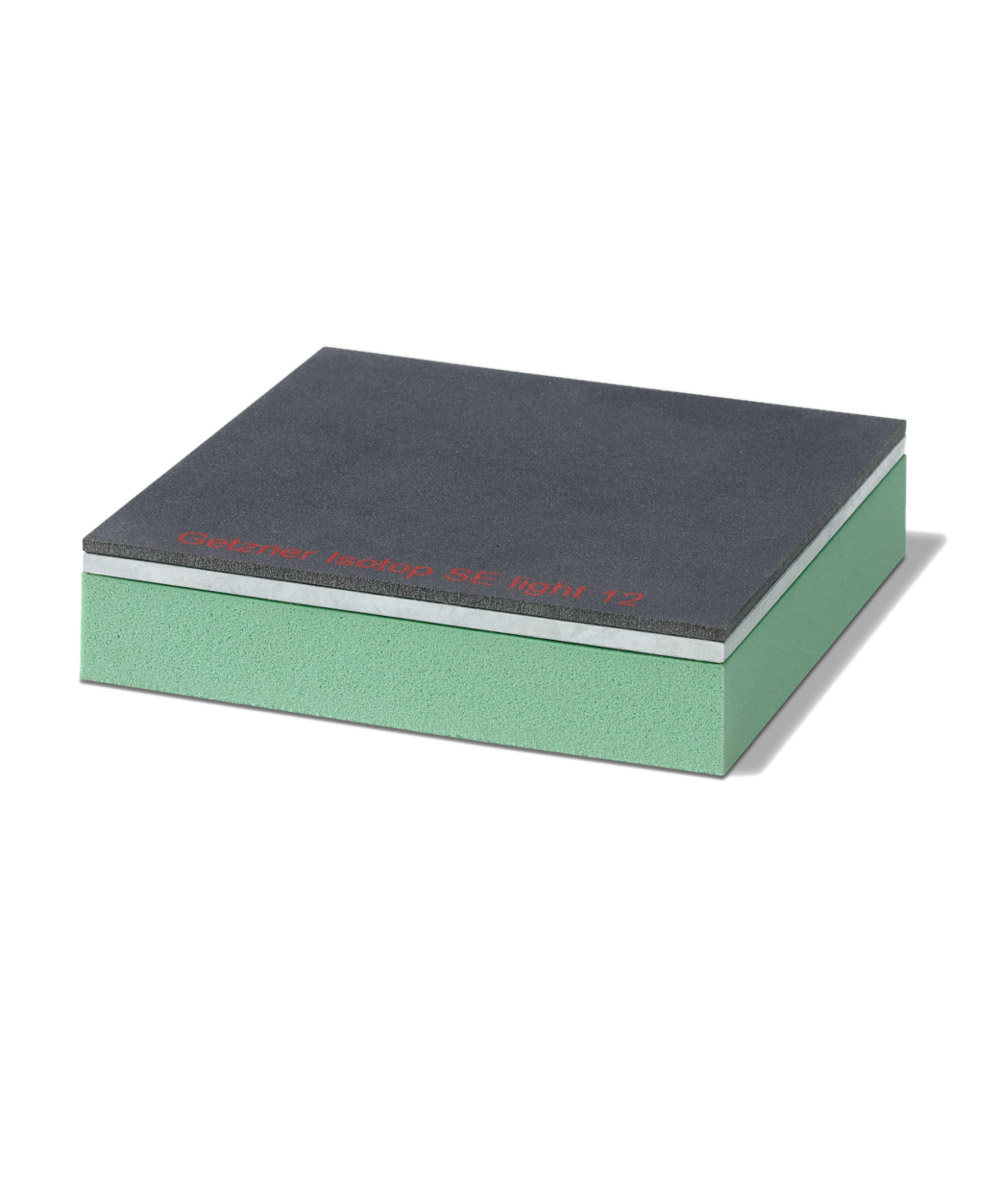

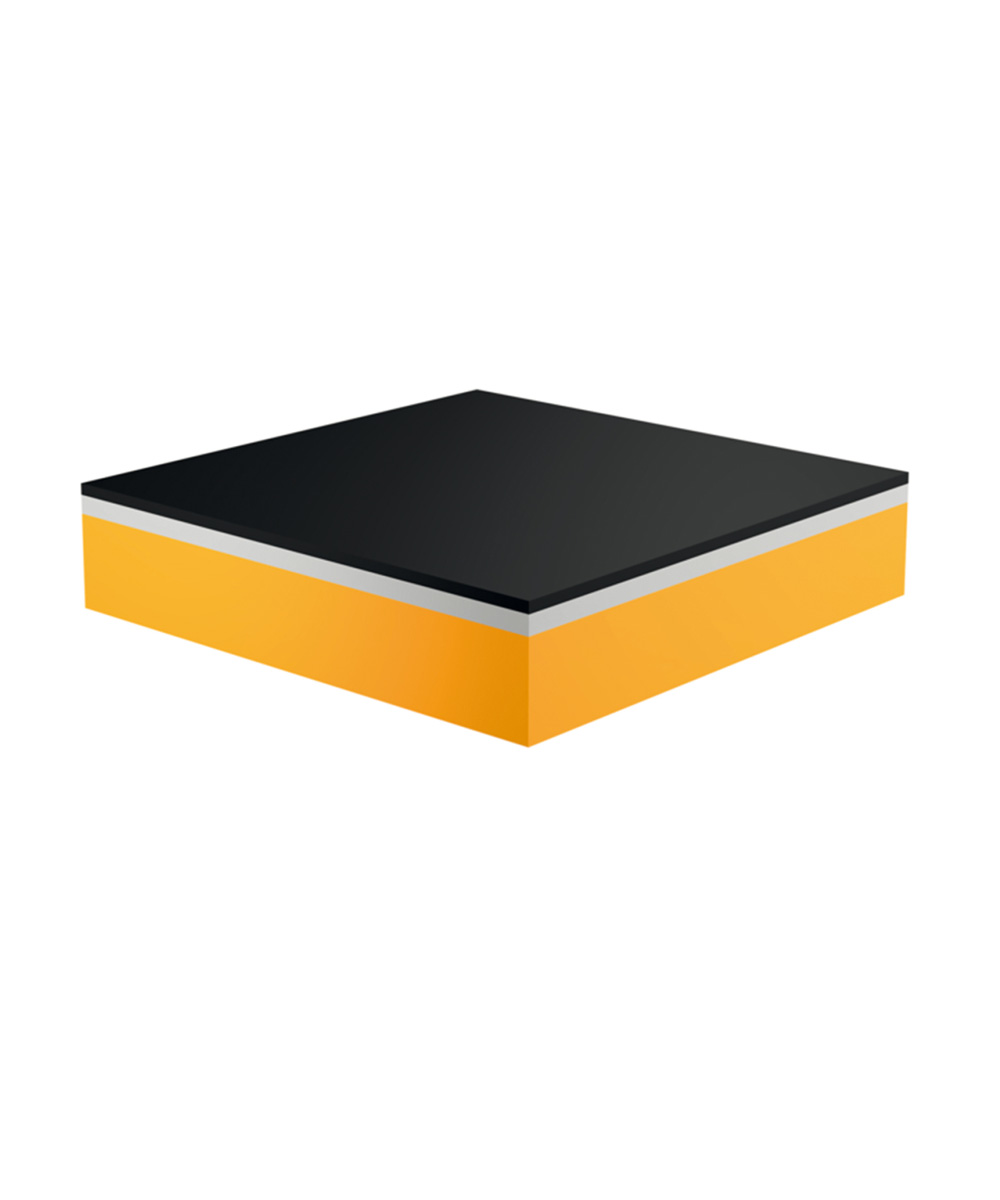

Isotop® SE Light sandwich elements
Isotop SE Light Sandwich vibration damping pads are innovative vibration isolators characterised by their high stability and low weight. They typically consist of a pressure distribution plate and an isolating layer. The isolating layer is often made from lightweight materials such as polyurethane foam. The pressure distribution plates in sandwich elements are mainly produced from strong materials like aluminium, steel or fibre composites (e.g. glass fibre or carbon fibre) to distribute the load evenly.
Isotop® sandwich vibration damping pads are impressive
- High structural strength despite low weight, due to a combination of strong pressure distribution plates and lightweight isolating layers.
- Exceptional acoustic insulation properties – ideal for applications where sound control is important.
- Simple installation, low maintenance requirements and therefore lower operating costs.
The right Isotop® SE Light sandwich elements for every application
- Sandwich vibration damping pad for load ranges between 63 kg and 930 kg.

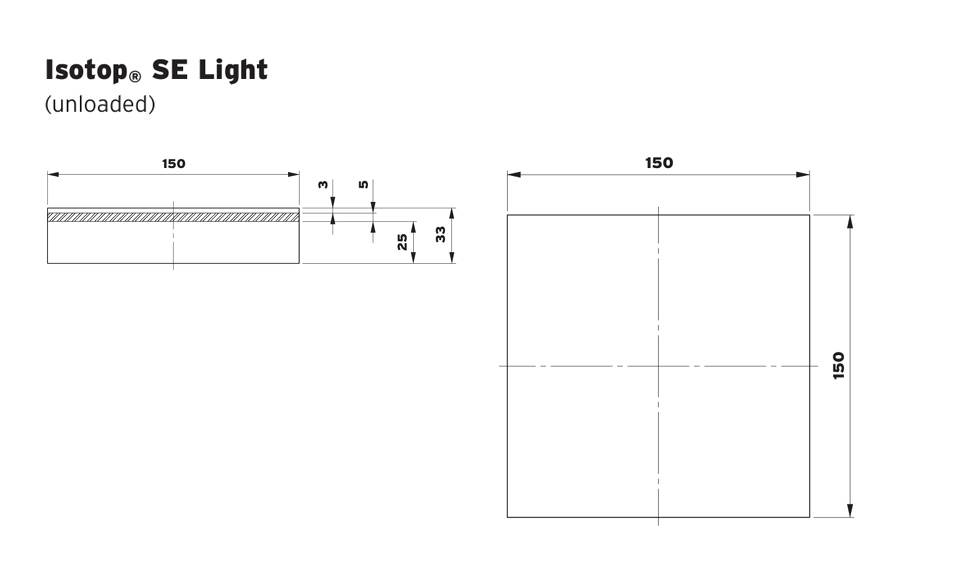

- Overall height 33 mm.
- Isolating layer made from Sylomer® with 25 mm thickness.
- Natural frequency from 10.8 Hz.
- Electro-galvanised pressure distribution plate.
- 3 mm anti-slip mat. Contact us for further information and enquiries.
Isotop® SE Light 6-1
Isotop® SE Light 12-1
Isotop® SE Light 24-1
Isotop® SE Light 47-1
Isotop® SE Light 93-1
